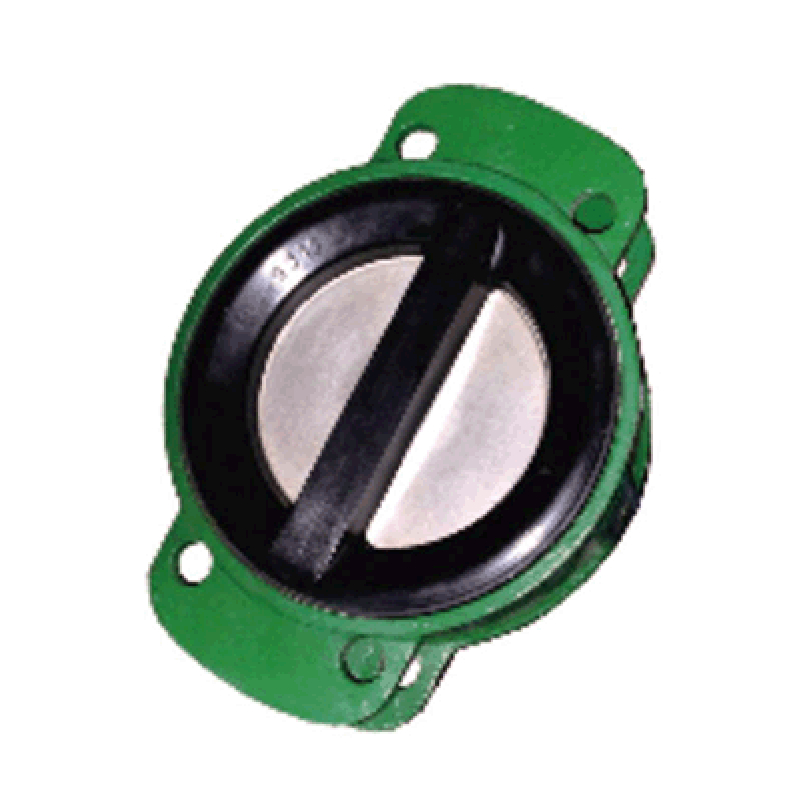

Lined check valve

Valve ya kuangalia yenye mstari

1. Design and manufacture: API 594.
2. Flange dimensions: ASME B16.1/EN 1092.
3. Mtihani na ukaguzi: API 598/EN12266.
4. Ukubwa hadi 24".

WASILIANA NA SASA Upakuaji wa PDF

Maelezo

Lebo

Viwango

1. Design and manufacture: API 594.
2. Flange dimensions: ASME B16.1/EN 1092.
3. Mtihani na ukaguzi: API 598/EN12266.
4. Ukubwa hadi 24".

Nyenzo

Part	Material
Mwili	DUCTILE ORON -GGG40
Diski	304SS/318SS/BRONZE
SEAT	NBR/EPDM
SPRING	STANLLESS STEEL

Vipimo

DN	A	B	C	D	E	F	G	J	L	*a()**
2"	158.8	101.6	84.1	66.7	52.4	125	18	47.6	54.0	45
2-1/2"	177.8	120.7	98.4	79.4	52.4	145	18	58.7	54.0	45
3"	190.5	133.4	115.9	92.1	52.4	160	18	69.9	54.0	22.5
4"	235.0	171.5	142.9	117.5	61.9	180	18	87.3	63.5	22.5
5"	269.9	193.7	171.5	144.5	65.1	210	18	112.7	66.7	22.5
6"	304.8	222.3	200.0	171.5	77.8	240	22	141.3	79.4	22.5
8"	368.3	269.9	254.0	222.3	96.8	295	22	192.1	98.4	15
10"	428.6	336.6	308.0	276.2	100.0	355	26	230.2	101.6	15
12"	495.3	406.4	365.1	327.0	128.6	410	26	274.6	130.2	15
