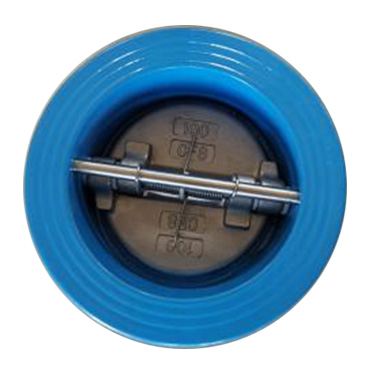

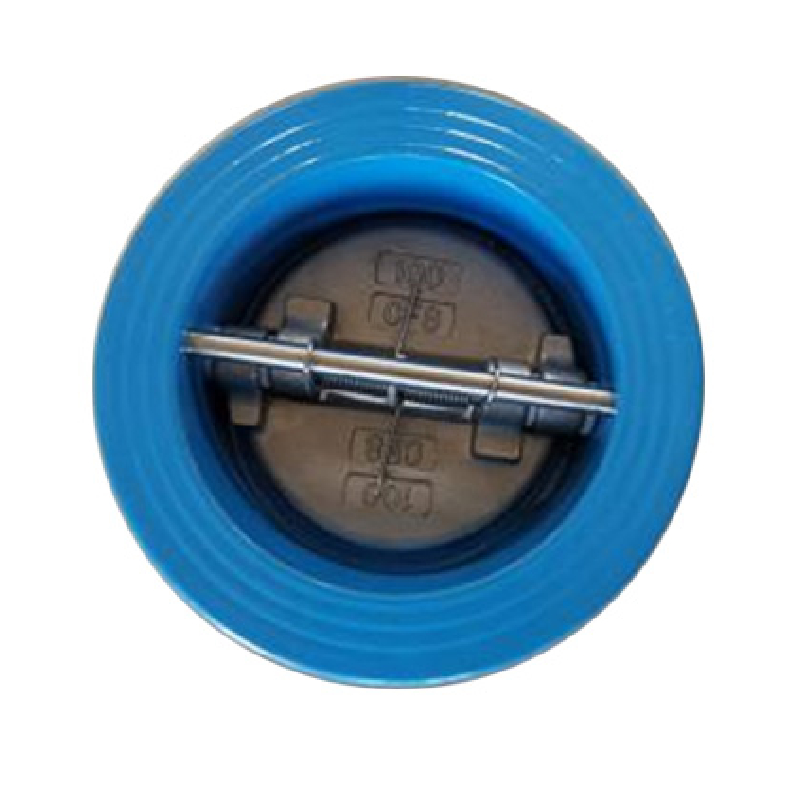

Dual Plate Check Valve

Valve ya ukaguzi wa sahani mbili

1. Kubuni na kutengeneza: EN 12334/API 594.
2. Vipimo vya flange: ASME B16.1/EN 1092
3. Mtihani na ukaguzi: API 598/EN12266.
4. Ukubwa hadi 24".

WASILIANA NA SASA Upakuaji wa PDF

Maelezo

Lebo

Viwango

1. Kubuni na kutengeneza: EN 12334/API 594.
2. Vipimo vya flange: ASME B16.1/EN 1092
3. Mtihani na ukaguzi: API 598/EN12266.
4. Ukubwa hadi 24".

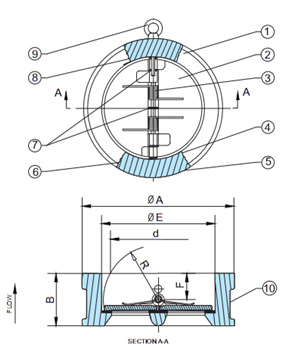

Nyenzo

HAPANA.	SEHEMU	NYENZO
1	Mwili	Chuma cha Kutupwa, Chuma cha Ductile
2	Bamba	Ductile Iron+Ni, CF8, CF8M, Bronze
3	Spring	Chuma cha pua
4	Pini ya bawaba	Chuma cha pua
5	Plug	Chuma cha Canbon
6	Kubeba Mwili	PTFE
7	Kuzaa Spring	PTFE
8	Acha Pini	Chuma cha pua
9	Bolt ya Macho	Chuma cha Canbon
10	Kiti cha Mwili	NBR, EPDM, Viton, Neoprene

Vipimo

SIZE		B	E	F	R	d	A
KATIKA	DN	B	E	F	R	d	KUTOKA PN10/16	ANSI150
2	50	43	65	19	28.8	43.3	107	102
2-1/2	65	46	80	20	36.1	60.2	127	121
3	80	64	94	28	43.3	66.4	142	133
4	100	64	117	27	52.8	90.8	162	171
5	125	70	145	30	65.7	116.9	192	193
6	150	76	170	30	78.6	144.6	218	219
8	200	89	224	31	104.4	198.2	273	276
10	250	114	265	33	127	233.7	328	336
12	300	114	310	50	148.3	283.9	378/382	406
14	350	127	360	43	172.4	332.9	438/442	448
16	400	140	410	45	197.4	381	488/495	511
18	450	152	450	52	217.8	419.9	538/555	546
20	500	152	505	58	241	467.8	592/617	603
24	600	178	624	73	295.4	572.6	695/734	714
28	700	229	720	98	354	680	809	828
32	800	241	825	100	398	770.5	916	936
