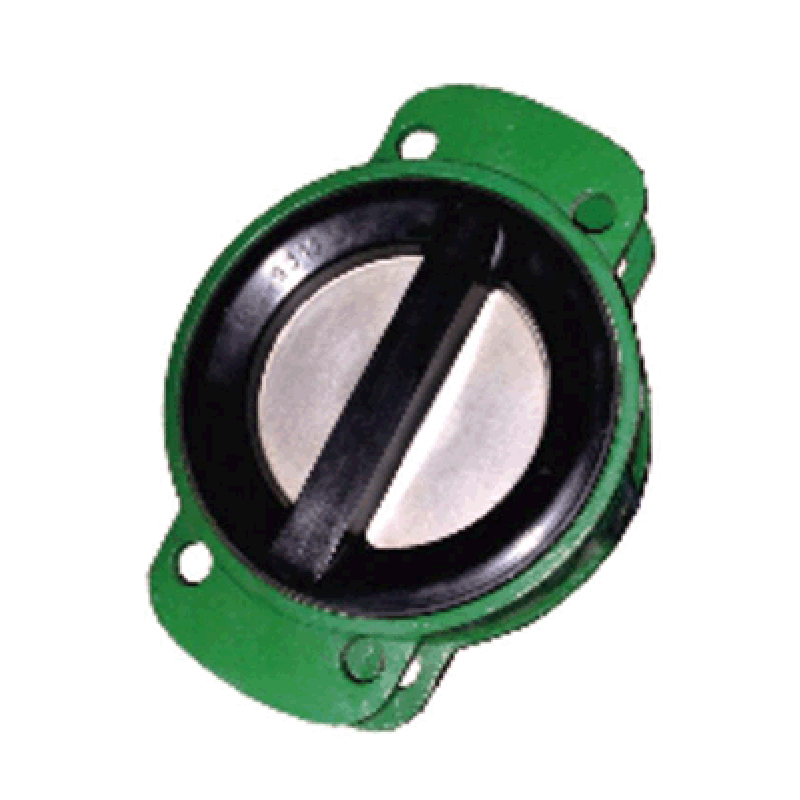

Lined check valve

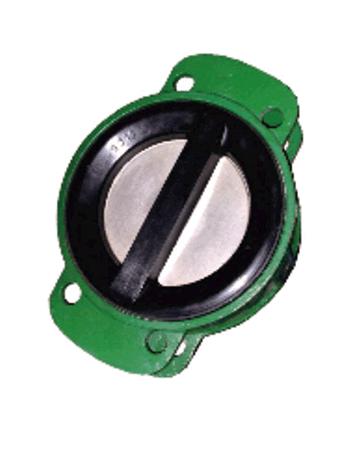

Lined check valve

1. Design and manufacture: API 594.
2. Flange dimensions: ASME B16.1/EN 1092.
3. Test and inspection: API 598/EN12266.
4. Size up to 24".

CONTACT NOW PDF Download

Details

Tags

Standards

1. Design and manufacture: API 594.
2. Flange dimensions: ASME B16.1/EN 1092.
3. Test and inspection: API 598/EN12266.
4. Size up to 24".

Materials

Part	Material
Body	DUCTILE ORON -GGG40
Disc	304SS/318SS/BRONZE
SEAT	NBR/EPDM
SPRING	STANLLESS STEEL

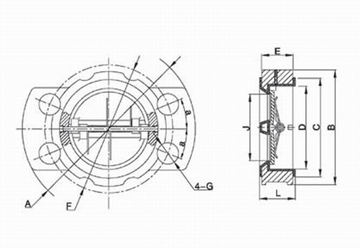

Dimensions

DN	A	B	C	D	E	F	G	J	L	*a()**
2"	158.8	101.6	84.1	66.7	52.4	125	18	47.6	54.0	45
2-1/2"	177.8	120.7	98.4	79.4	52.4	145	18	58.7	54.0	45
3"	190.5	133.4	115.9	92.1	52.4	160	18	69.9	54.0	22.5
4"	235.0	171.5	142.9	117.5	61.9	180	18	87.3	63.5	22.5
5"	269.9	193.7	171.5	144.5	65.1	210	18	112.7	66.7	22.5
6"	304.8	222.3	200.0	171.5	77.8	240	22	141.3	79.4	22.5
8"	368.3	269.9	254.0	222.3	96.8	295	22	192.1	98.4	15
10"	428.6	336.6	308.0	276.2	100.0	355	26	230.2	101.6	15
12"	495.3	406.4	365.1	327.0	128.6	410	26	274.6	130.2	15

pvc non return valve types

spring type nrv

swing check valve wafer type

swing type check valve

valve wafer type
