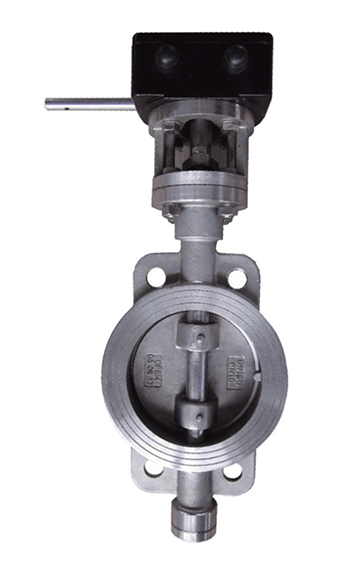

High Performance Butterfly Valve

Valve ya Kipepeo ya Utendaji wa Juu

1. Design and manufacture:API 609/MSS SP-68.
2. Flange dimensions:EN 1092-2/BS 4504.
3. Top flange dimensions:ISO 5211.
4. Face to face dimensions:EN 558/ISO 5752/DIN 3202.
5. Test and inspection:API 598.
6. Size up to 16".

WASILIANA NA SASA Upakuaji wa PDF

Maelezo

Lebo

Viwango

1. Design and manufacture: API 609/MSS SP-68.
2. Flange dimensions: EN 1092-2/BS 4504.
3. Vipimo vya juu vya flange: ISO 5211.
4. Vipimo vya uso kwa uso: EN 558/ISO 5752/DIN 3202.
5. Test and inspection: API 598.
6. Size up to 16".

Nyenzo

1	Mwili	WCB / CF8M
2	Diski	WCB / CF8M
3	Kiti	S.S. 316
4	Cover	WCB / CF8M
5	Shina	S.S. 316
6	Stuff cover	WCB / CF8M
7	Yoke	WCB / CF8M
6	Jalada la mwisho	WCB / CF8M

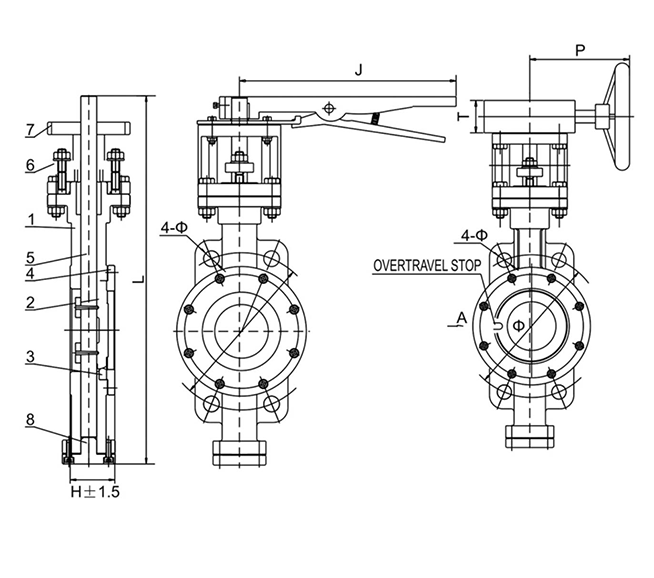

Vipimo

DN	H	L	KUTOKA PN 16		CL150		P	T	J
DN	H	L	Φ	4-Φ	Φ	4-Φ	P	T	J
50	43	300	125	18	120.5	19	178	62	265
65	46	318	145	18	139.5	19	178	62	265
80	49	350	160	18	152.5	19	178	62	265
100	56	452	180	18	190.5	19	178	62	265
125	64	479	210	18	216	22	235	78	265
150	70	512	240	23	241.5	22	235	78	365
200	71	636	295	23	298.5	22	235	78	365
250	76	731	355	27	362	25	235	78	365
300	83	797	410	27	432	25	226	80	365
