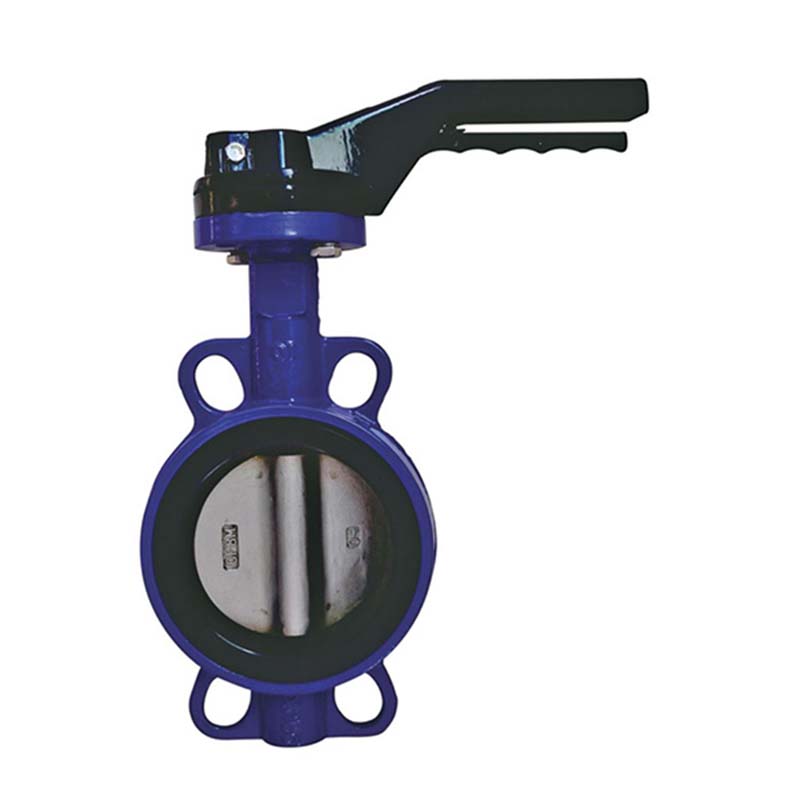

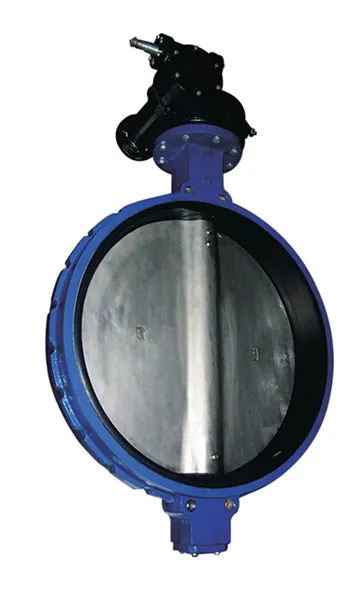

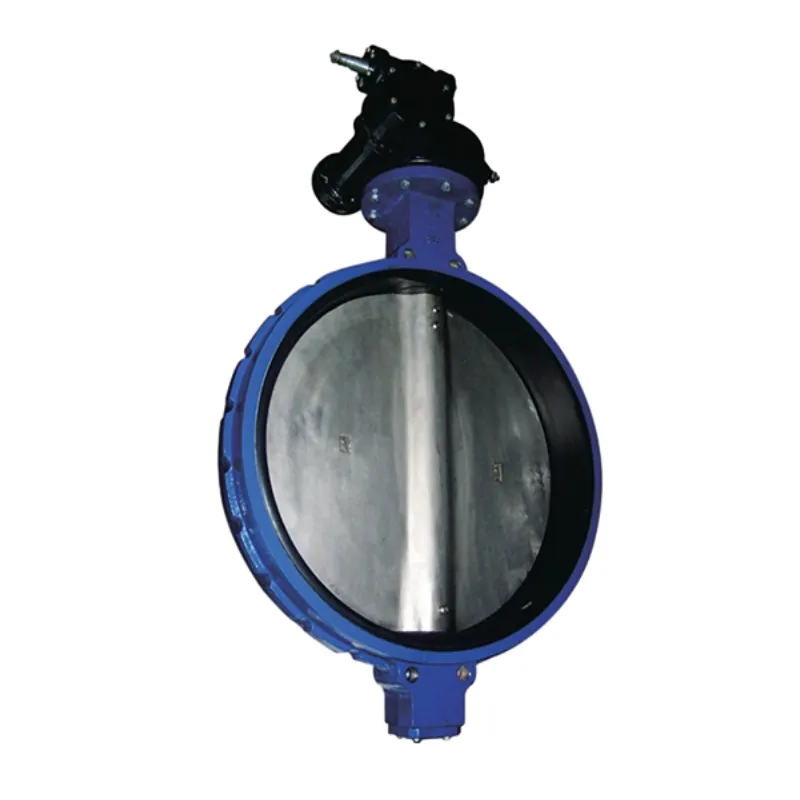

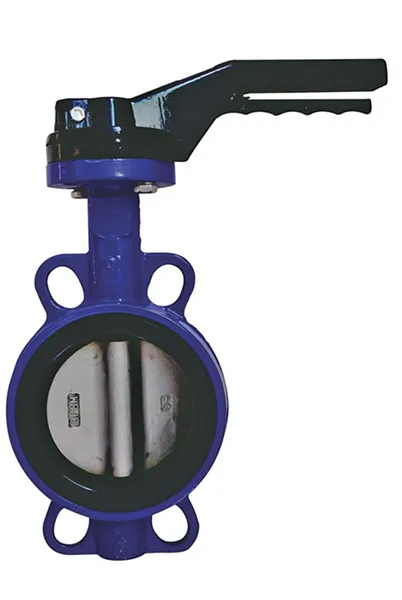

Wafer Type Butterfly Valve

Wafer Type Butterfly Valve

1. Design and manufacture: EN 593/BS 5155/MSS SP-67.

2. Flange dimensions: EN 1092-2/BS 4504/ASME B16.1.

3. Top flange dimensions: ISO 5211.

4. Face to face dimensions: EN 558/ISO 5752/DIN 3202.

5. Test and inspection: API 598/EN12266.

6. Size up to 48".

CONTACT NOW PDF Download

Details

Tags

Standards

1. Design and manufacture: EN 593/BS 5155/MSS SP-67.
2. Flange dimensions: EN 1092-2/BS 4504/ASME B16.1.
3. Top flange dimensions: ISO 5211.
4. Face to face dimensions: EN 558/ISO 5752/DIN 3202.
5. Test and inspection: API 598/EN12266.
6. Size up to 48".

Materials

1	Body	Cast iron / Ductile iron
2	Disc	Ductile iron / AI Bronze / Stainless steel
3	Seat	NBR / EPDM / PTFE
4	Stem	Stainless steel
5	Bushing	PTFE / AI Bronze
6	"O" ring	NBR / EPDM / Viton

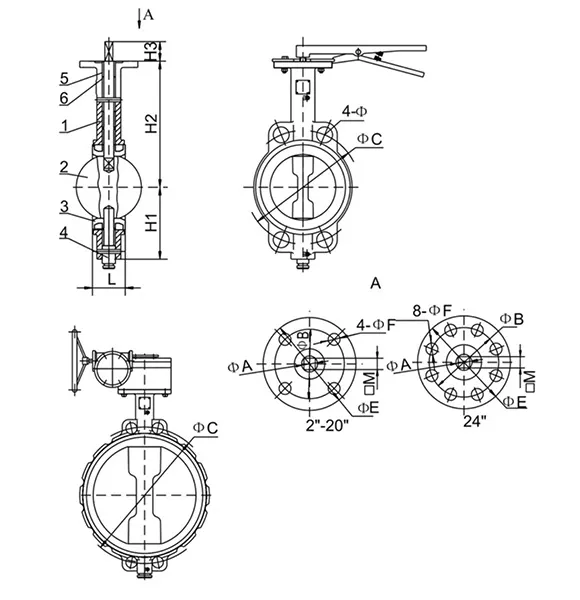

Dimensions

DN	H1	H2	H3	L	DIN PN 10		DIN PN 16		ΦA	ΦE	ΦB	ΦF	ΦM
DN	H1	H2	H3	L	ΦC	Φ	ΦC	Φ	ΦA	ΦE	ΦB	ΦF	ΦM
40	73	123	32	33	110	18	110	18	12.7	65	50	4-7	9
50	83	162	32	43	125	18	125	18	12.7	65	50	4-7	9
65	89	175	32	46	145	18	145	18	12.7	65	50	4-7	9
80	95	181	32	46	160	18	160	18	12.7	65	50	4-7	9
100	114	200	32	52	180	18	180	18	15.9	90	70	4-9	11
125	127	213	32	56	210	18	210	18	19.05	90	70	4-9	14
150	140	225	32	56	240	23	240	23	19.05	90	70	4-11	14
200	173	260	36	60	295	23	295	23	22.2	125	102	4-11	17
250	203	292	36	68	350	23	355	27	28.6	125	102	4-11	22
300	237	337	36	78	400	23	410	27	31.8	125	102	4-13	22

Valve Standard

1. Design and manufacture: EN 593/BS 5155/MSS SP-67.
2. Flange dimensions: EN 1092-2/BS 4504/ASME B16.1.
3. Top flange dimensions: ISO 5211.
4. Face to face dimensions: EN 558/ISO 5752/DIN 3202.
5. Test and inspection: API 598/EN12266.
6. Size up to 48".

Materials

1	Body	Cast iron / Ductile iron
2	Disc	Ductile iron / AI Bronze / Stainless steel
3	Seat	NBR / EPDM / PTFE
4	Stem	Stainless steel
5	Bushing	PTFE / AI Bronze
6	"O" ring	NBR / EPDM / Viton

Dimensions

DN	H1	H2	H3	L	DIN PN 10		DIN PN 16		ΦA	ΦE	ΦB	ΦF	ΦM
DN	H1	H2	H3	L	ΦC	Φ	ΦC	Φ	ΦA	ΦE	ΦB	ΦF	ΦM
350	275	123	32	33	110	18	110	18	12.7	65	50	4-7	9
400	315	162	32	43	125	18	125	18	12.7	65	50	4-7	9
450	335	175	32	46	145	18	145	18	12.7	65	50	4-7	9
500	376	181	32	46	160	18	160	18	12.7	65	50	4-7	9
600	466	200	32	52	180	18	180	18	15.9	90	70	4-9	11
700	510	213	32	56	210	18	210	18	19.05	90	70	4-9	14
800	576	225	32	56	240	23	240	23	19.05	90	70	4-11	14
900	637	260	36	60	295	23	295	23	22.2	125	102	4-11	17
1000	701	292	36	68	350	23	355	27	28.6	125	102	4-11	22
1200	844	337	36	78	400	23	410	27	31.8	125	102	4-13	22
