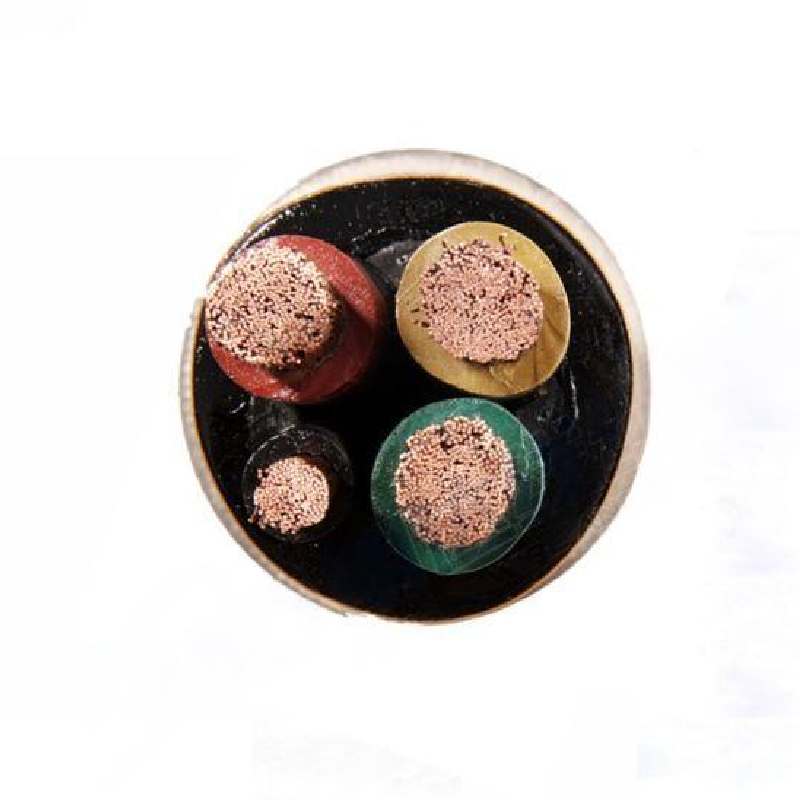

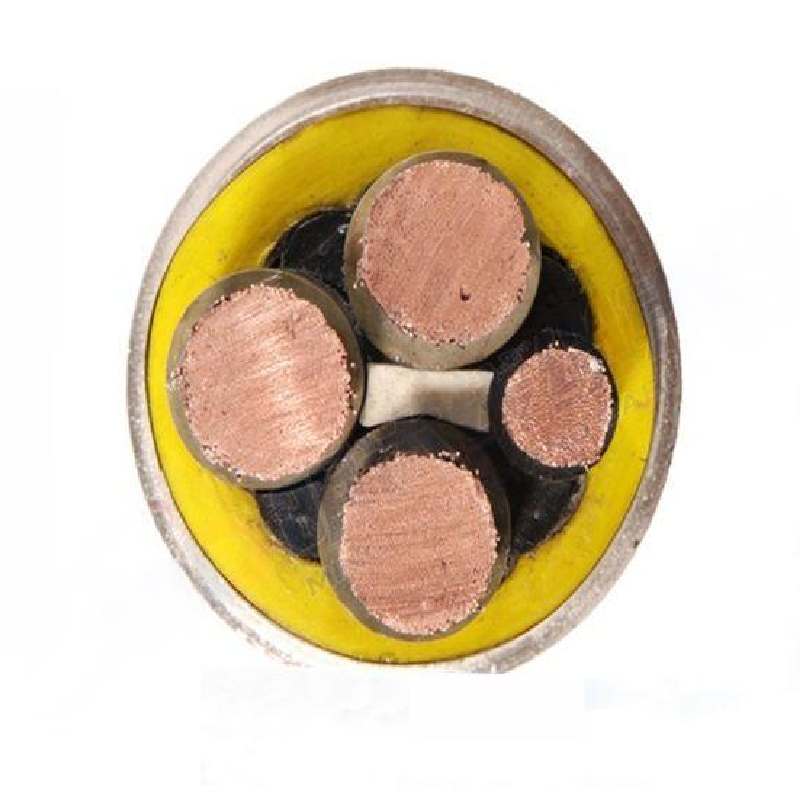

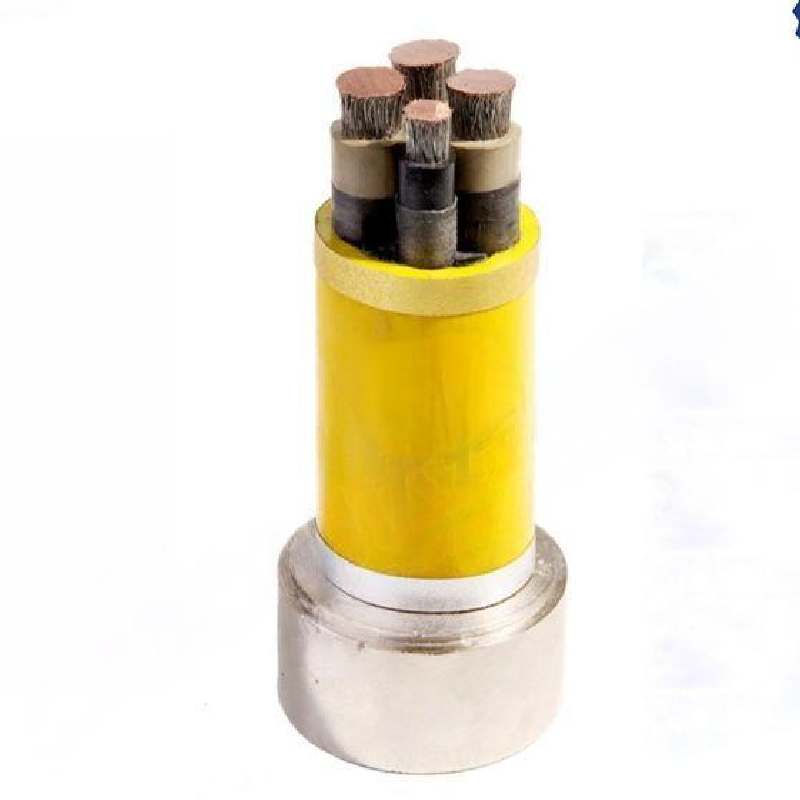

MV Rubber Insulated Cable For Shield Tunneling Machine

1. Grounded conductor

2. Semi conductor layer for grounded conductor

3. Power core conductor

CONTACT NOW PDF Download

Details

Tags

CONSTRUCTION
silicone rubber cable

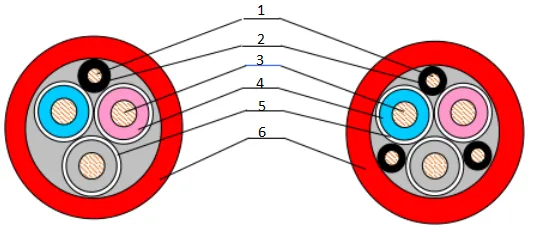

1. Grounded conductor
2. Semi-conductor layer for grounded conductor
3. Power core conductor
4. Power core insulation
5. Metal/fiber braided screen
6. Outer sheath

Dimensions rubber insulated cable

8.7/10kV metal/fiber braided screened,mining rubber insulated cable

Cores no. x cross section area (mm² )	Insulation thickness (mm)	Sheath thickness (mm)	Cable OD (mm)		Weight (km/kg)	Max resistance 20C (Ω/km)	Current capacity at 25C(A)
Cores no. x cross section area (mm² )	Insulation thickness (mm)	Sheath thickness (mm)	min	max	Weight (km/kg)	Max resistance 20C (Ω/km)	Current capacity at 25C(A)
3×35+3×16/3+1×16	5.5	5.5	63.0	66.0	5860	0.565	135
3×50+3×25/3+1×25	5.5	5.5	66.0	69.0	6849	0.393	170
3×70+3×35/3+1×35	5.5	5.5	70.0	73.0	8200	0.277	205
3×95+3×50/3+1×50	5.5	5.5	75.0	78.0	10000	0.21	250
3×25+3×10	5.5	5.5	56.2	61.2	4260	0.795	110
3×35+3×10	5.5	5.5	59.2	64.2	4828	0.565	135
3×50+3×16	5.5	5.5	63.1	68.1	5680	0.393	170
3×70+3×16	5.5	5.5	69.5	74.5	7180	0.277	205
3×95+3×16	5.5	5.5	74.0	79.0	8340	0.21	250
