8000 Series Aluminium Alloy Conductor SER Service Entrance Cable

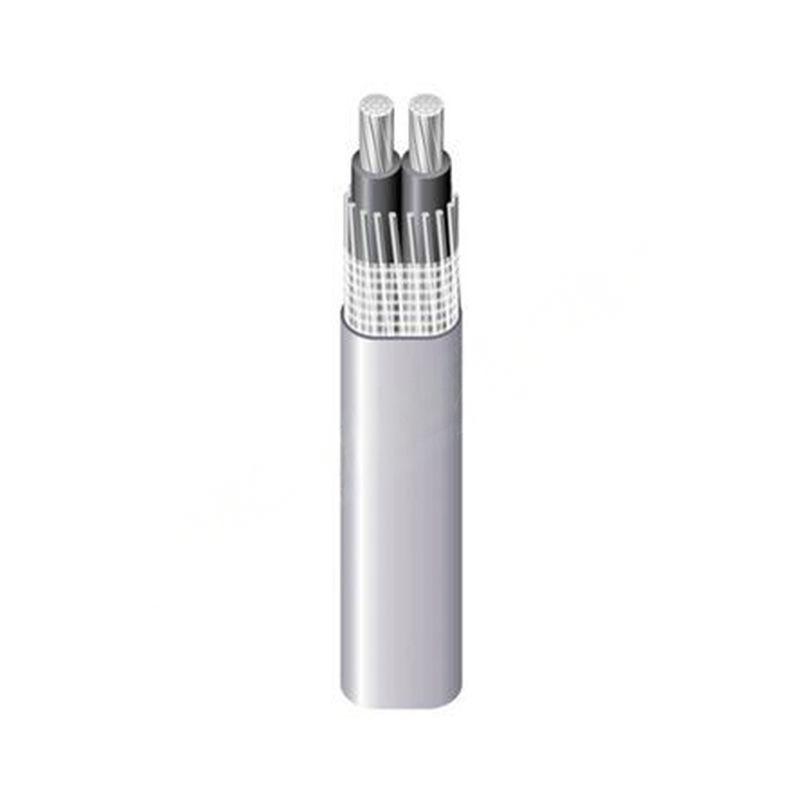

Construction: The stranded compacted 8000 series aluminium alloy conductor is insulated with black XLPE. The insulated conductors are cabled together with AL-alloy concentric neutral and fiberglass reinforced polyester tape binder, and over sheathed by grey sunlight resistant PVC.

CONTACT NOW PDF Download

Details

Tags

Product details cable tv

internet and tv bundles Application: Mainly used to convey power from the Service drop to the meter base to the distribution board. SEU can also be used in certain branch circuits as permitted by 1999 NEC. It is used in wet or dry locations.

tv and internet packages Rated Voltage：600V.

cable and internet Operating Temperature: Max permissible continuous operating temperature of conductor shall not exceed 90℃.

cable internet Standard: UL 44 and UL 854,Federal Specification J-C-30B or other standards required by customers.

cable tv Packing: Steel/wooden reel, wooden reel or steel reel.

Standards

Aluminum Alloy SEU Service Entrance Cable

Conductor		Approx. Overall Diameter	Conductor*		Approx. Overall Diameter
No. of Cores	Size AWG	inch	No. of Cores	Size AWG	inch
2	8-2	0.368	3	1/0-1/0-1/0	0.680x1.125
2	6-2	0.430	3	2/0-2/0-2/0	0.736x1.221
2	4-2	0.499	3	3/0-3/0-3/0	0.826x1.358
2	2-2	0.569	3	4/0-4/0-4/0	0.878x1.462
3	8-8-8	0.386x0.600	3(reduced neutral)	4-4-6	0.474x0.775
3	6-6-6	0.430x0.687	3(reduced neutral)	2-2-4	0.554x0.910
3	4-4-4	0.499x0.800	3(reduced neutral)	1/0-1/0-2	0.667x1.101
3	2-2-2	0.569x0.925	3(reduced neutral)	2/0-2/0-1	0.720x1.205
3	1-1-1	0.643x1.051	3(reduced neutral)	4/0-4/0-2/0	0.835x1.419
