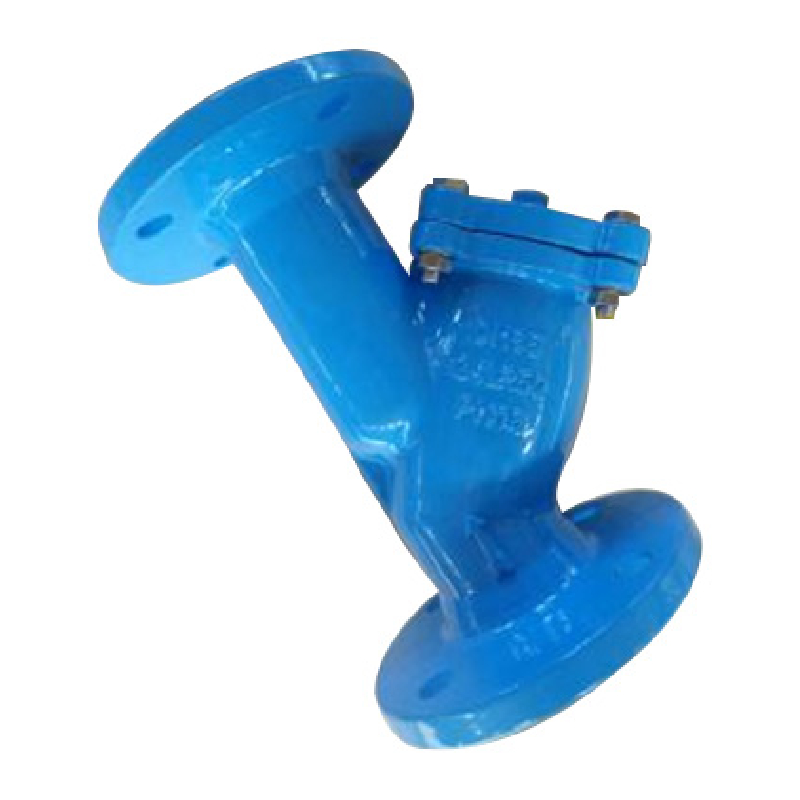

Y Strainer

1. Flange dimensions:ASME B16.1 / DIN 2533 / BS 4504.
2. Face to face dimensions:ASME B16.10 / DIN 3210 F1 / BS 2080.
3. Test and inspection: API 598.
4. Screen thickness:0.5mm.
5. Size up to 16".

CONTACT NOW PDF Download

Details

Tags

Standards

1. Flange dimensions:ASME B16.1 / DIN 2533 / BS 4504.
2. Face to face dimensions:ASME B16.10 / DIN 3210 F1 / BS 2080.
3. Test and inspection: API 598.
4. Screen thickness:0.5mm.
5. Size up to 16".

Materials

1	Body	Cast iron / Ductile iron
2	Bonnet	Cast iron / Ductile iron
3	Screen	Stainless steel 304
4	Gasket	Graphite
5	Screw Plug	Ductile iron
6	Bolt	Garbon steel

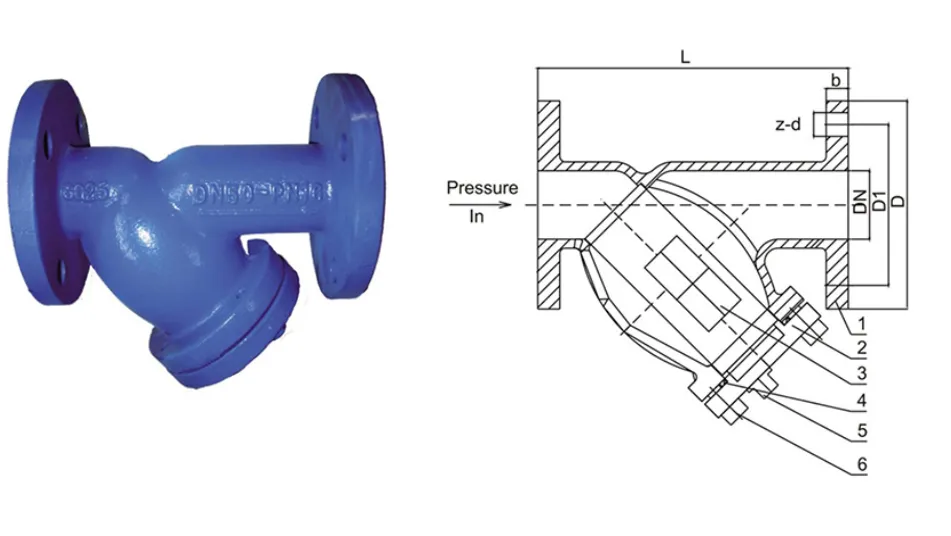

Dimensions

DN	L	D1	D	b	z-d
50	230	125	165	20	4-19
65	290	145	185	20	4-19
80	310	160	200	22	8-19
100	350	180	220	24	8-19
125	400	210	250	26	8-19
150	480	240	285	26	8-23
200	600	295	340	26	12-23
250	730	335	405	28	12-27
300	850	410	460	28	12-27
350	980	470	520	30	16-27
400	1100	525	580	32	16-30
450	1200	585	640	32	20-30
500	1250	715	65	32	20-33
600	1450	840	770	35	20-36
700	1500	910	840	40	24-36
