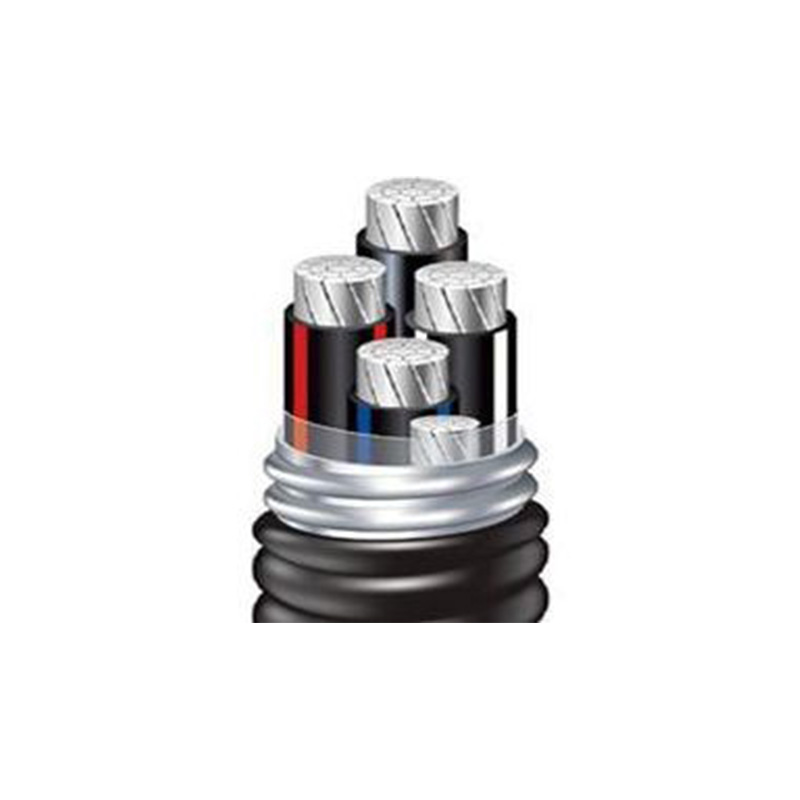

Type ACWU 90

Type ACWU 90

ACWU90 Cable is suitable for use as follows: branch, feeder and service power distribution in commercial, industrial, multi-residential buildings, theaters and places of assembly.





PDF Download

Details

Tags

Canadian Standards



 It is installed in a cable tray and approved raceways or direct burial. It is suitable for use in wet or dry locations. Its Maximum voltage rating for all applications is 600 V.

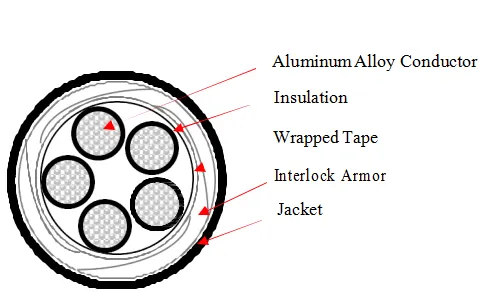

Features
  •  Nominal voltage：600V.
  • 8000 series aluminum alloy conductor.
  • Cross-linked Polyethylene (XLPE) Insulated.
  • An aluminum concentric bonding wire in single conductor cables and a bare aluminum bonding conductor in multi-conductor cables.
  •  An aluminum alloy interlocked armor.
  • Flame retardant PVC sheath is applied over interlocked armor
  • Meets or exceeds industry requirements of CSA C22.2No.51 or other standards required by customers.



Dimensions



Three & Four Conductor Aluminum ACWU 600V XLPE Insulation:

Gauge Size

Ground Wire Size

Min Avg Insulation Thickness (mm)

Nominal Overall Diameter

Aluminum Weight (lbs/km)

Net Weight (kg/km)

Insulation (mm)

Armor (mm)

Cable (mm)

Three Conductor

6

8

1.1

6.76

19.89

22.33

137

484

4

6

1.14

7.87

23.32

25.76

216

657

2

6

1.14

9.27

26.52

28.96

316

840

1

4

1.14

10.62

29.59

32.03

409

1008

1/0

4

1.4

11.58

31.8

34.24

500

1166

2/0

4

1.4

12.6

34.11

36.55

616

1336

3/0

4

1.4

13.79

36.83

39.27

762

1559

4/0

4

1.4

15.06

39.75

42.19

947

1809

250

2

1.65

16.81

46.02

48.87

1146

2309

350

2

1.65

19.23

51.54

54.38

1563

2905

500

1

1.65

22.3

58.57

61.42

2224

3815

600

1

2.03

24.99

61.57

65.1

2667

4519

750

1/0

2.03

27.36

68.73

73.71

3307

5513

Four Conductor

2

4

1.14

9.27

27.71

30.15

410

943

1

4

1.14

10.62

30.96

33.4

542

1149

1/0

4

1.4

11.58

33.3

35.74

648

1323

2/0

4

1.4

12.6

35.74

38.18

804

1543

3/0

4

1.4

13.79

40.92

43.76

998

1990

4/0

4

1.4

15.06

43.99

46.84

1243

2316

250

2

1.65

16.81

48.21

51.05

1497

2732

350

2

1.65

19.23

54.03

56.87

2052

3475

500

1

1.65

22.3

61.44

65.05

2925

4710

600

1

2.03

24.99

68.02

71.55

3515

5615

750

1/0

2.03

27.36

73.66

77.27

4358

6670
