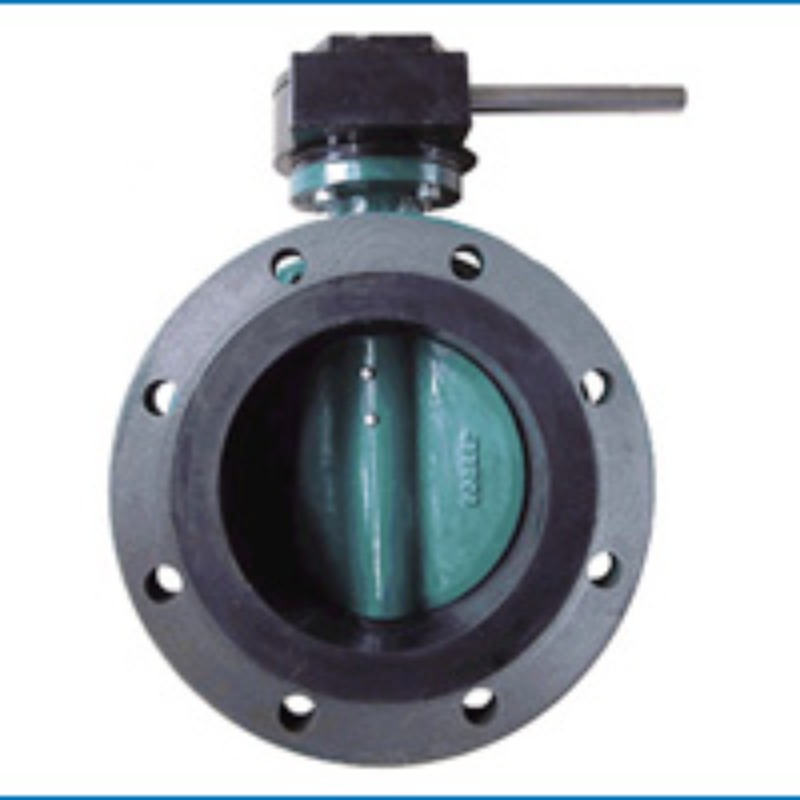

Valve ya Kipepeo ya Flange ya Kiti iliyoharibiwa

1. Design and manufacture: API 609/EN 593/AWWA C504.
2. Flange dimensions:EN 1092-2/ASME B16.1.
3. Vipimo vya juu vya flange: ISO 5211.
4. Vipimo vya uso kwa uso: EN 558/ISO 5752/DIN 3202.
5. Test and inspection: API 598.
6. Size up to 80".

WASILIANA NA SASA Upakuaji wa PDF

Maelezo

Lebo

Viwango

1. Design and manufacture: API 609/EN 593/AWWA C504.
2. Flange dimensions:EN 1092-2/ASME B16.1.
3. Vipimo vya juu vya flange: ISO 5211.
4. Vipimo vya uso kwa uso: EN 558/ISO 5752/DIN 3202.
5. Test and inspection: API 598.
6. Size up to 80".

Nyenzo

1	Mwili	Chuma cha kutupwa / chuma cha ductile
2	Diski	Chuma cha ductile / AI Bronze / Chuma cha pua
3	Shina	Stainless steel 410/316
4	Kiti	NBR / EPDM / PTFE
5	Bushing	PTFE / AI Bronze
6	"O" pete	NBR / EPDM

Vipimo

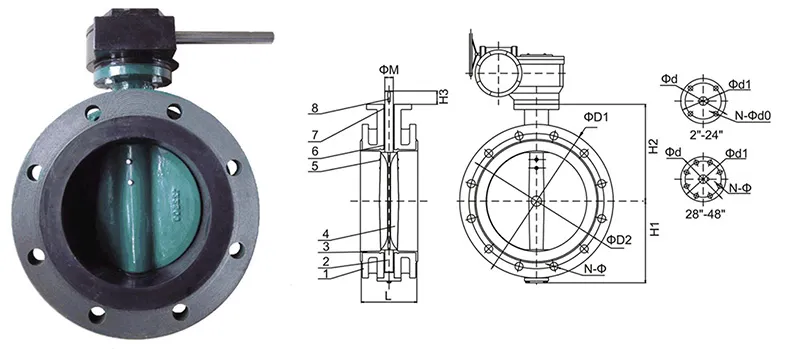

DN	H1	H2	H3	L	ΦD1	ΦD2	N-Φ	ΦM	Φd	Φd1	N-Φ
50	80	110	30	108	165	125	4-19	12.6	65	50	4-8
65	80	134	30	112	185	145	8-19	12.6	65	50	4-8
80	95	131	30	114	200	160	8-19	12.6	65	50	4-8
100	114	150	30	127	220	180	8-19	15.7	90	70	4-10
125	123	170	30	140	250	210	8-19	18.9	90	70	4-10
200	139	180	30	140	285	240	8-23	18.9	90	70	4-10
250	175	210	37	152	340	295	12-23	22.1	125	102	4-12
300	203	245	37	165	405	355	12-28	28.4	125	102	4-12
400	242	276	37	178	460	410	12-28	31.6	125	102	4-12
300	296	376	51.2	216	580	525	16-31	33.2	175	140	4-18
65	316	407	51.2	222	640	585	20-31	38	175	140	4-18
80	352	448	64.2	229	715	650	20-34	41.2	175	140	4-18
100	441	518	70.2	267	840	770	20-37	50.6	210	165	4-22
125	473	560	86	292	910	840	24-37	55	300	254	8-18
150	527	620	86	318	1025	950	24-41	55	300	254	8-18
200	581	685	118	330	1125	1050	28-41	75	300	254	8-18
250	653	735	142	410	1255	1170	28-44	85	350	298	8-18

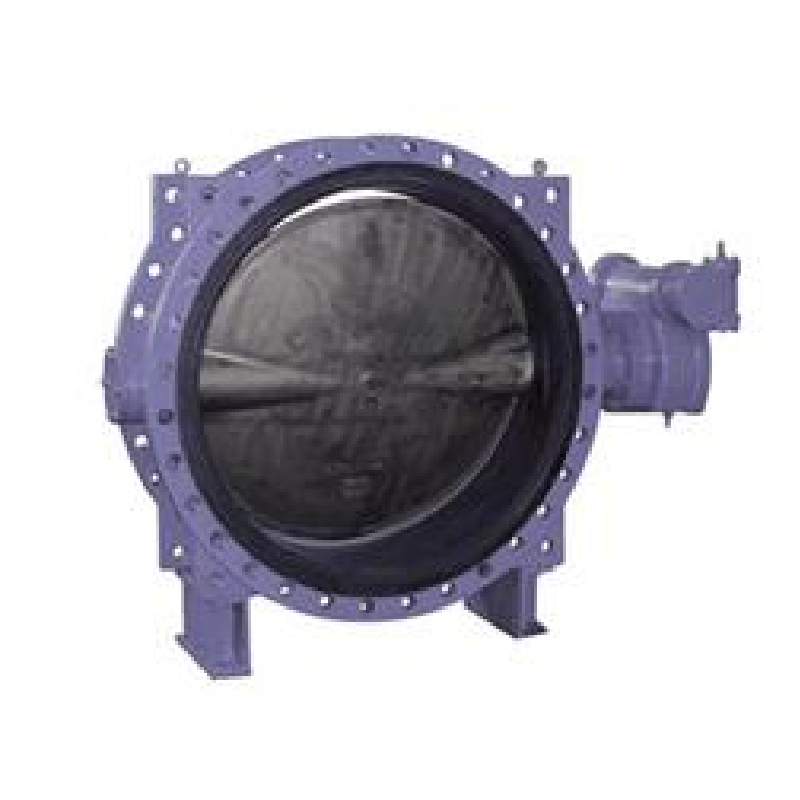

Valve Standard

1. Design and manufacture: API 609/EN 593/AWWA C504.
2.Flange dimensions:EN 1092-2/ASME B16.1.
3. Vipimo vya juu vya flange: ISO 5211.
4. Vipimo vya uso kwa uso: EN 558/ISO 5752/DIN 3202.
5. Test and inspection: API 598.
6. Size up to 80".

Nyenzo

1	Mwili	Chuma cha kutupwa / chuma cha ductile
2	Diski	Chuma cha ductile / AI Bronze / Chuma cha pua
3	Shina	Stainless steel 410/316
4	Kiti	NBR / EPDM / PTFE
5	Bushing	PTFE / AI Bronze
6	"O" pete	NBR / EPDM

Vipimo

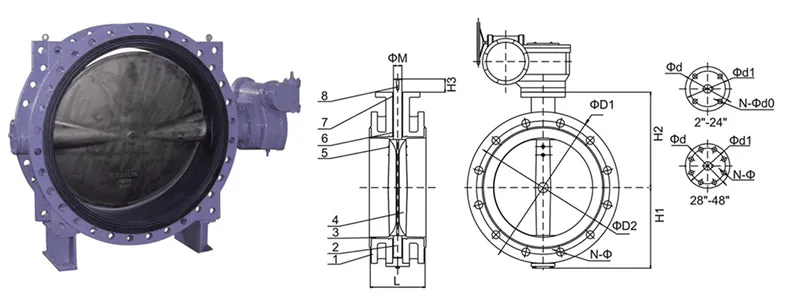

DN	H1	H2	H3	L	ΦD1	ΦD2	N-Φ	ΦM	Φd	Φd1	N-Φ
1200	786	917	150	470	1485	1390	32-48	105	350	298	8-22
1400	925	1000	200	530	1685	1590	36-48	120	415	356	8-32
1600	1045	1150	200	600	1930	1820	40-56	140	415	356	8-32
1800	1156	1200	280	670	2130	2020	44-56	160	475	406	8-40
2000	1350	1325	280	760	2345	2230	48-62	160	475	406	8-40
2200	1430	1500	300	800	2555	2440	52-62	180	560	483	12-40
