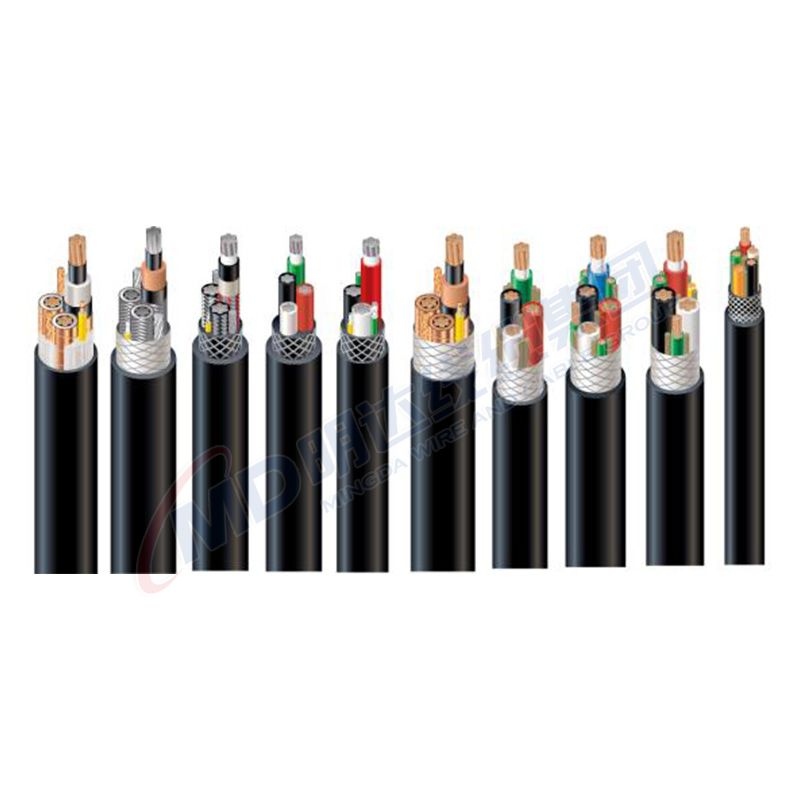

Aina ya W ya Kondakta Mbili Kebo ya Nguvu Inayobebeka 2kV

These cables are designed for general use where bare grounding conductors are not required or desired.

WASILIANA NA SASA Upakuaji wa PDF

Maelezo

Viwango

Ujenzi

1. Stranded Tinned Copper Conductor

2. EPR Insulation

3. Reinforcement CPE Sheath

Options

Other jacket materials/color such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fiber between the two layers can be offered as an option.

Mechanical and Thermal Properties

Vipimo na Uzito

Ujenzi	No. of Strands	Nominal Insulation Thickness		Nominal Overall Diameter		Uzito wa majina		Ampacity
No. of Cores×AWG/kcmil	No. of Strands	inchi	mm	inchi	mm	lbs/kft	kg/km	A
2×8	166	0.06	1.5	0.83	21.1	391	581	72
2×6	259	0.06	1.5	0.94	23.9	571	849	95
2×4	412	0.06	1.5	1.07	27.3	793	1180	127
2×2	259	0.06	1.5	1.26	32.1	1142	1699	167
2×1/0	414	0.08	2.0	1.51	38.3	1693	2520	217
2×2/0	522	0.08	2.0	1.65	41.9	1908	2840	250
2×3/0	658	0.08	2.0	1.77	45.0	2600	3870	286
2×4/0	829	0.08	2.0	1.92	48.8	2675	3980	328
2×250	973	0.095	2.4	2.10	53.3	3434	5110	363
