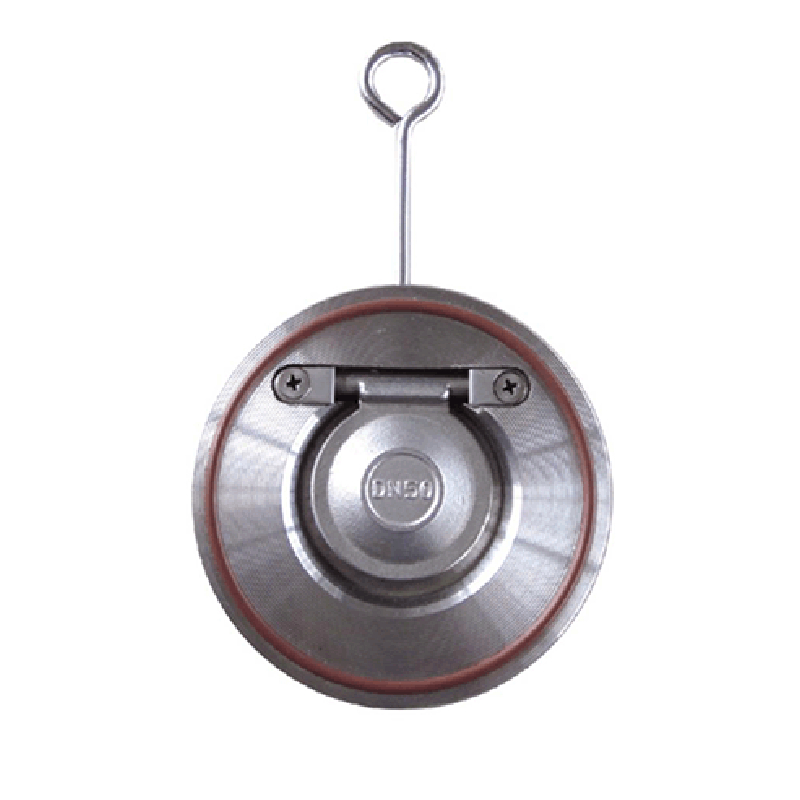

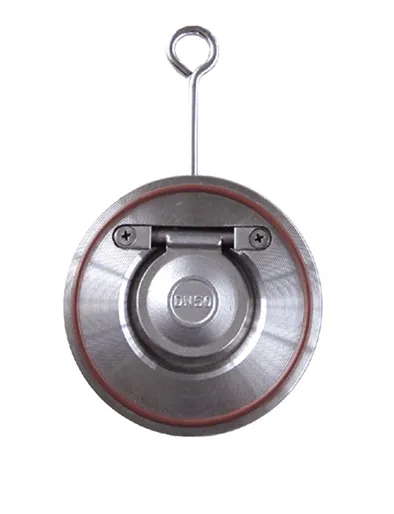

Valve ya Kuangalia Sahani Moja

Name: Single Plate Check Valve
Brand: control valve - Professional butterfly valve Manufacturer and Supplier
Availability: InStock
Rating: 4.5 (89 reviews)

1. Design and manufacture: API 594.
2. Flange dimensions: ASME B16.1/EN 1092.
3. Mtihani na ukaguzi: API 598/EN12266.
4. Ukubwa hadi 24".

WASILIANA NA SASA Upakuaji wa PDF

Maelezo

Lebo

Viwango

1. Design and manufacture: API 594.
2. Flange dimensions: ASME B16.1/EN 1092.
3. Mtihani na ukaguzi: API 598/EN12266.
4. Ukubwa hadi 24".

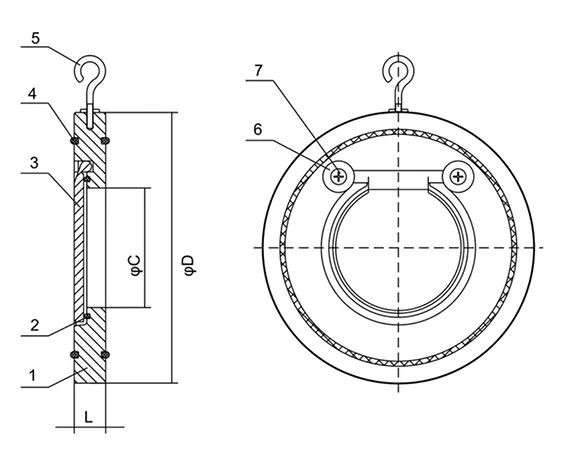

Nyenzo

1	Mwili	C.S. / S.S.
2	Kiti	NBR/EPDM/Viton/PTFE
3	Diski	C.S. / S.S.
4	"O" Ring	NBR/EPDM/Viton/PTFE
5	Bolt ya Macho	C.S.
6	Washer	C.S. / S.S.
7	Screw	C.S. / S.S.

Vipimo

SIZE	C	D				L
SIZE	C	PN6	PN10	PN16	PN25	L
1"	20	82	82	82	82	14
1.5"	22	88	95	95	95	14
2"	32	98	109	109	109	14
2.5"	40	118	129	129	129	14
3"	54	134	144	144	144	14
4"	70	154	164	165	170	18
5"	92	184	195	195	198	18
6"	112	209	220	220	228	20
8"	154	264	275	275	288	22
10"	200	319	330	330	343	26
12"	240	375	380	380	403	32
14"	270	425	440	440	460	38
16"	310	475	490	490	517	44
18"	360	530	540	540	567	44
20"	405	580	595	595	627	56
24"	485	681	698	698	737	62
