Portable Cord

Kamba ya Kubebeka

The flexible copper conductor is insulated with ethylene-propylene rubber (EPR). Two, three or four insulated conductors are cabled together with filler and sheathed with chlorinated polyethylene.





Upakuaji wa PDF

Maelezo

Lebo



Maelezo ya bidhaa



Application: This product is used for industry equipment, heavy tools, battery charges, portable lights and power extensions. It is suitable for continuous submersion in water.

Rated Voltage: 300 V SJ, SJO, SJOW, SJOO, SJOOW;

600V SO, SOW, SOO, SOOW.

Joto la Uendeshaji: Max permissible continuous operating temperature of conductor -40oC-60oC for Type SJ cable;

-40oC-90oC for the others.

Kipenyo cha Kukunja: 5D, D = Actual outer diameter of cable (mm)

Kawaida: UL62-2000 or other standards required by customers.

Ufungashaji: Coil, Steel/wooden reel, wooden reel or steel reel.

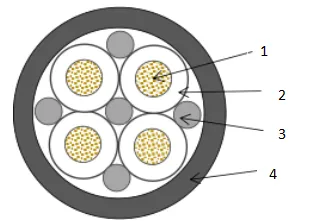

Maelezo ya bidhaa



1. Flexible copper conductor

2. EPR insulation

3. Rubber filler

4. CPE sheath



Type, Description and Application



Type

Maelezo

Application

SJ

300V EPR insulated chlorinated

polyethylene sheathed non-oil resistant

flexible cable, heavy type

For movable electric

tools, small motor outdoor

power supply

SJO, SJOW,

SJOO, SJOOW

300V EPR insulated chlorinated

polyethylene sheathed oil resistant flexible

cable, heavy type

For movable electric

tools, small motor outdoor

power supply

SO, SOW,

SOO, SOOW

600V EPR insulated chlorinated

polyethylene sheathed oil resistant flexible

cable, extra-heavy type

For industry equipment, heavy tools, chargers, illumination and

power

SOOW

NON- UL/ NON-CSA

600V EPR insulated chlorinated

polyethylene sheathed oil resistant flexible

cable, extra-heavy type

For industry equipment, heavy tools, chargers, illumination and

power



Safu ya Ugavi



Type

Rated Voltage (V)

Idadi ya Cores

Size (AWG)

SJ

300

2 to 4

18 to 10

SJO, SJOW, SJOO, SJOOW

300

2 to 4

18 to 10

SO, SOW, SOO, SOOW

600

2 to 5

2 to 4

18 to 6

4 to 2

SOOW NON- UL/ NON-CSA

600

2 to 5

8 to 2



Technical Characteristics, Type SJ



Ukubwa

No of

Cores

Stranding

Unene wa insulation ya majina

Jina

Ala

Unene

Average Overall Dia

mm

AWG



No/mm

mm

mm

mm

Calculated

Max

18

18

18

2

3

4

16/0.254 16/0.254 16/0.254

1.19

1.19

1.19

0.76

0.76

0.76

0.76

0.76

0.76

7.11

7.62

8.26

8.00

8.51

9.27

16

16

16

2

3

4

26/0.254 26/0.254 26/0.254

1.56

1.56

1.56

0.76

0.76

0.76

0.76

0.76

0.76

7.75

8.26

8.89

8.64

9.14

10.03

14

14

14

2

3

4

41/0.254 41/0.254 41/0.254

2.03

2.03

2.03

0.76

0.76

0.76

0.76

0.76

0.76

8.51

9.14

9.91

9.52

10.03

11.05

12

12

12

2

3

4

65/0.254

65/0.254

65/0.254

2.54

2.54

2.54

0.76

0.76

0.76

1.14

1.14

1.14

10.29

10.80

11.81

11.56

12.06

13.21

10

10

10

2

3

4

104/0.254 104/0.254 104/0.254

3.05

3.05

3.05

1.14

1.14

1.14

1.52

1.52

1.52

13.27

14.35

15.88

15.37

16.13

17.78

*Type SJO, SJOW, SJOO, SJOOW are also supplied based customer required
