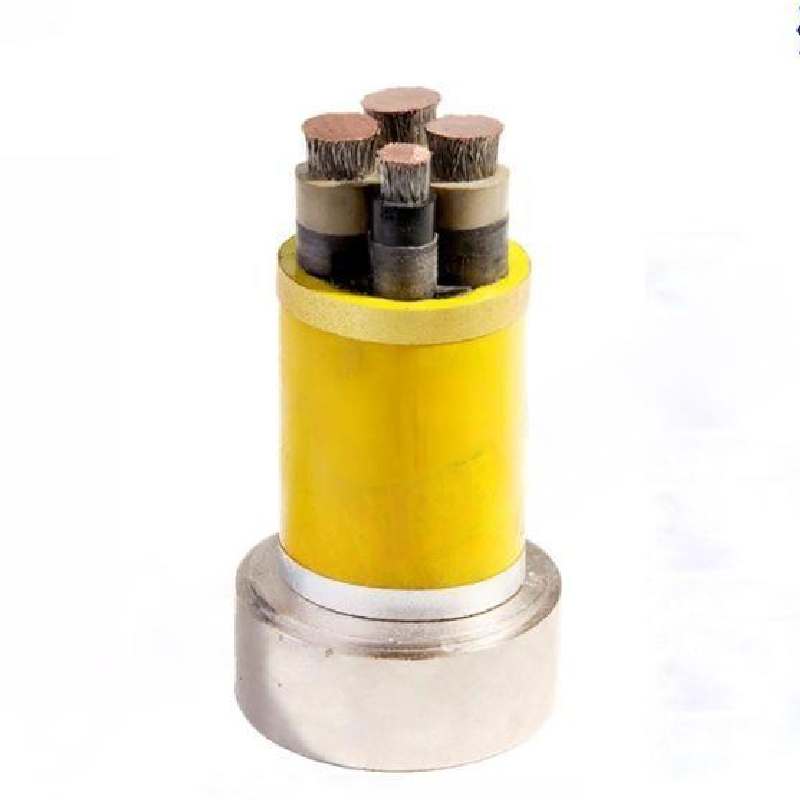

Metal Braided Screen/With Monitoring Core/Portable Mining Rubber Cable

Skrini Iliyosokotwa kwa Metali/Yenye Msingi wa Ufuatiliaji/Kebo ya Mpira ya Kubebeka ya Uchimbaji

1. Power core conductor

2. Power core insulation

3. Insulation screen ( also to be as grounded core conductor)

WASILIANA NA SASA Upakuaji wa PDF

Maelezo

Lebo

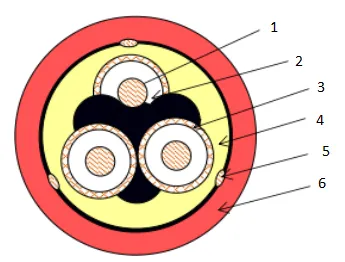

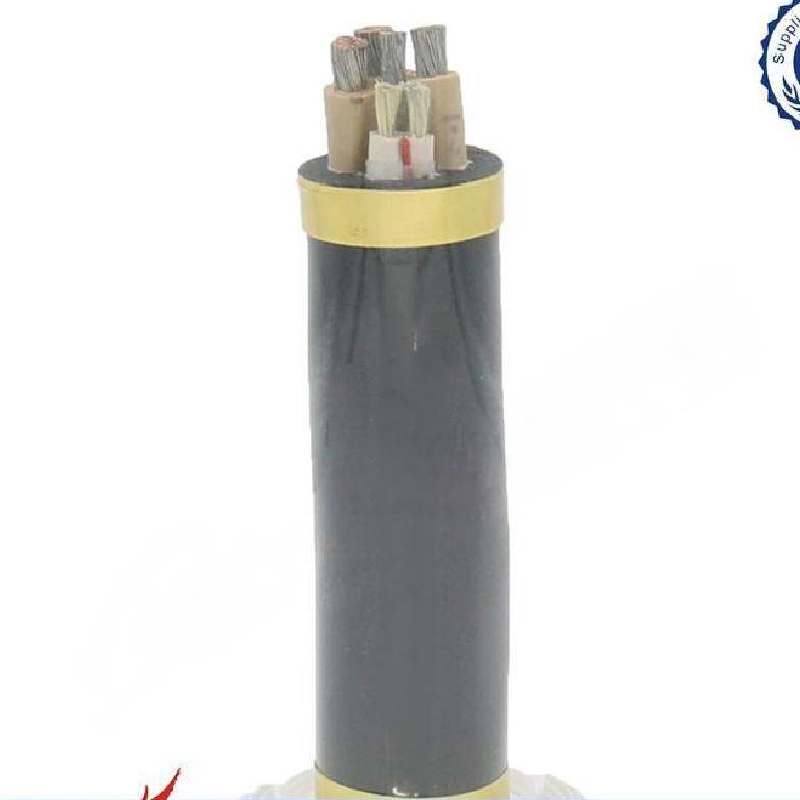

Ujenzi

1. Power core conductor
2. Power core insulation
3. Insulation screen ( also to be as grounded core conductor)
4. Inner sheath
5. Monitoring conductor and semi-conductor tape
6. Ala ya nje

Vipimo

Type：MYPTJ Rated voltage：6/10kV、8.7/10kV

Standard： Q/MD008-2009

Cores No. x cross section area (mm2 )	Uhamishaji joto unene (mm)	Ala unene (mm)	Cable OD (mm)		Uzito (km/kg)	Max resistance 20C (Ω/km)	25C current capacity (A)
			min	max
3×10+3×6/3+3×2.5	5.5	6.0	58.0	60.0	4350	1.95	63
						8 21
3×16+3×10/3+3×2.5	5.5	6.0	60.0	63.0	5292	1.24	85
						8 21
3×25+3×16/3+3×2.5	5.5	6.0	64.8	68.0	6010	0.795	110
						8.21
3×35+3×16/3+3×2.5	5.5	6.0	67.0	70.0	6585	0.565	135
						8.21
3×50+3×25/3+3×2.5	5.5	6.0	71.2	75.0	7810	0.393	170
						8.21
3×70+3×35/3+3×2.5	5.5	6.0	75.6	80.0	8900	0.277	205
						8.21
3×95+3×50/3+3×2.5	5.5	6.0	78.0	85.0	10130	0.21	250
						8.21
3×120+3×70/3+3×2.5	5.5	6.0	84.6	90.9	11880	0 164	295
						8.21
3×150+3×70/3+3×2.5	5.5	6.0	88.6	95.0	13600	0 132	320
						8.21
3×185+3×95/3+3×2.5	5.5	6.0	90.0	100. 0	15680	0 108	360
						8.21
