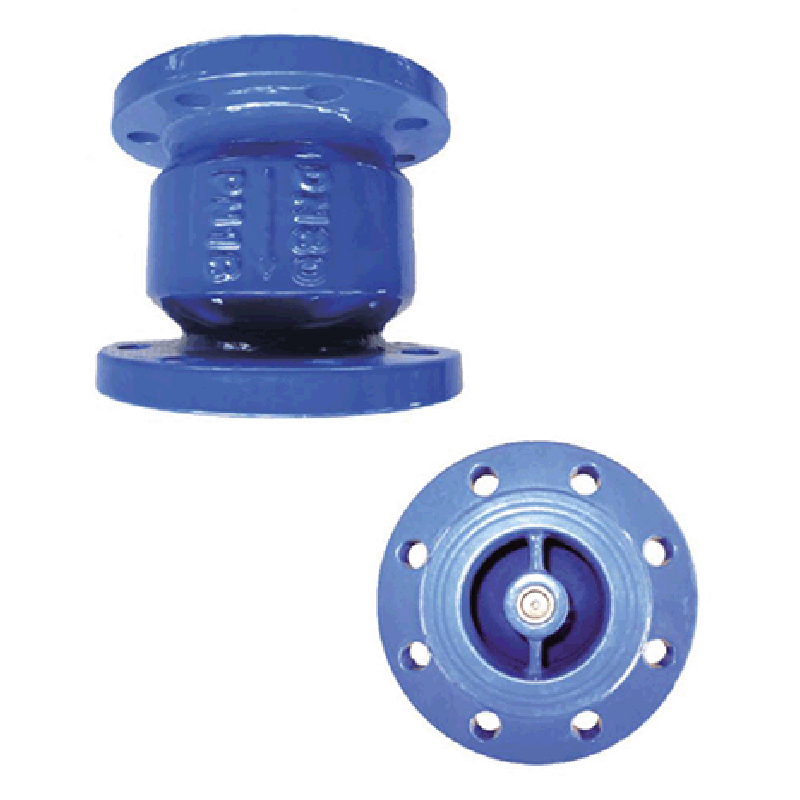

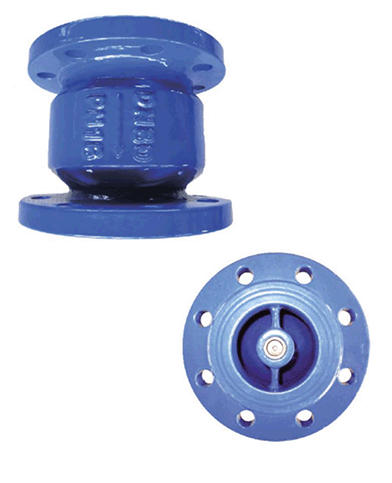

Flange Type Silent Check Valve

Aina ya Flange Silent Check Valve

1. Design and manufacture:API 594
2. Flange dimensions:ASME B16.1/EN1092.
3. Test and inspection:API 598/EN12266.
4. Size up to 12”

WASILIANA NA SASA Upakuaji wa PDF

Maelezo

Lebo

Viwango

1. Design and manufacture: API 594
2. Flange dimensions: ASME B16.1/EN1092.
3. Mtihani na ukaguzi: API 598/EN12266.
4. Size up to 12”

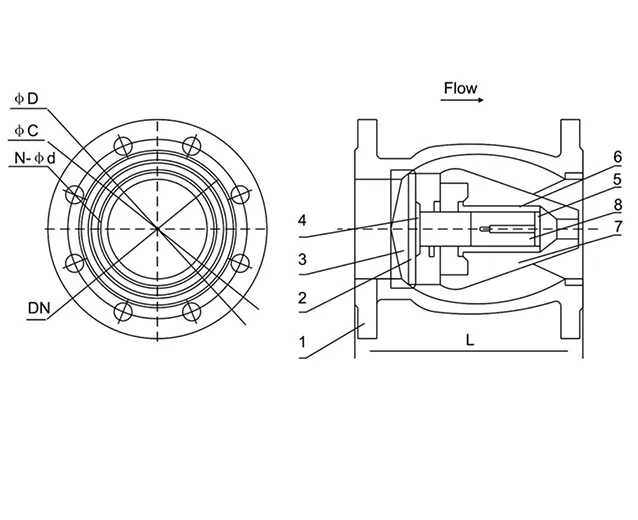

Nyenzo

1	Mwili	Ductile iron
2	Sealing	NBR
3	Diski	WCB
4	Platen	Carbon steel
5	Spring gland	S.S. 13Cr
6	Spring	S.S. 316
7	Valve guide	Copper alloy
8	Shina	S.S. 13Cr

Vipimo

DN	L	PN10
DN	L	ΦD	ΦC	N-Φd
40	110	150	110	4-18
50	120	165	125	4-18
65	150	185	145	4-18
80	180	200	160	4-18
100	229	220	180	8-19
125	254	250	210	8-19
150	267	285	240	8-23
200	292	340	295	8-23
250	330	395	350	12-23
300	356	445	400	12-23
350	381	505	460	16-23
