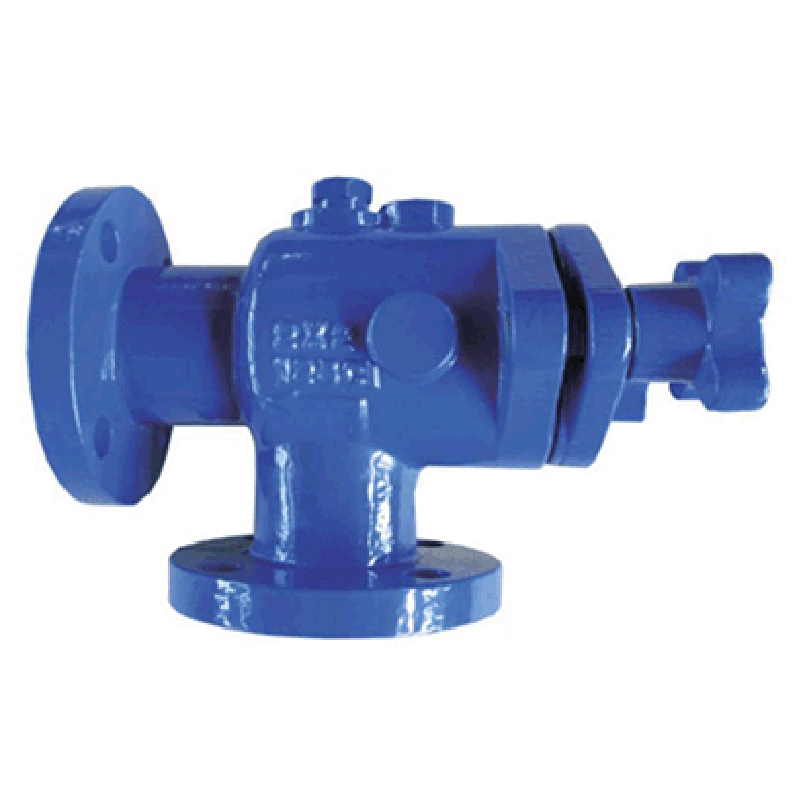

Suction Diffuser

Name: Suction Diffuser
Brand: control valve - Professional butterfly valve Manufacturer and Supplier
Availability: InStock
Rating: 4.5 (89 reviews)

1.Flange dimensions:ASME B16.1 / DIN 2533 / BS 4504.
2.Test and inspection:API 598/BS EN12266
3.Size up to 20"

CONTACT NOW PDF Download

Details

Tags

Standards

1. Flange dimensions:ASME B16.1 / DIN 2533 / BS 4504.
2. Test and inspection: API 598/BS EN12266
3. Size up to 20"

Materials

1	Body	Cast iron / Ductile iron
2	Bonnet	Cast iron / Ductile iron
3	Screen	Stainless steel
4	O Ring	EPDM
5	Bolt	Carbon Steel

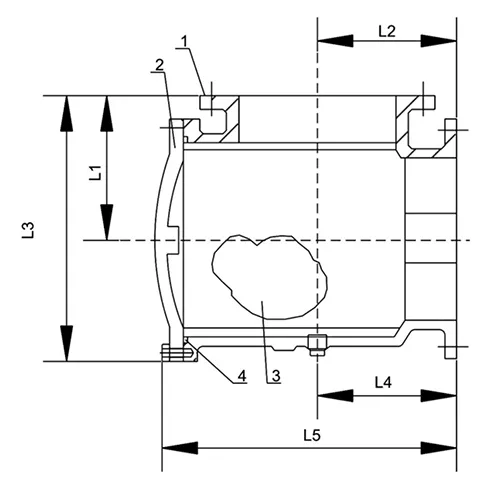

Dimensions

DN	L1	L2	L3	L4	L5
50×50	114	114	178	151	253
65×60	127	127	199	167	270
80×50	140	114	207	154	252
80×65	140	140	226	179	284
80×80	140	140	226	179	284
100×80	165	165	280	223	334
100×100	165	165	280	210	328
125×100	191	191	332	254	394
125×125	191	191	349	254	394
150×100	203	165	310	223	334
150×125	203	203	367	272	423
150×150	203	203	367	272	423
