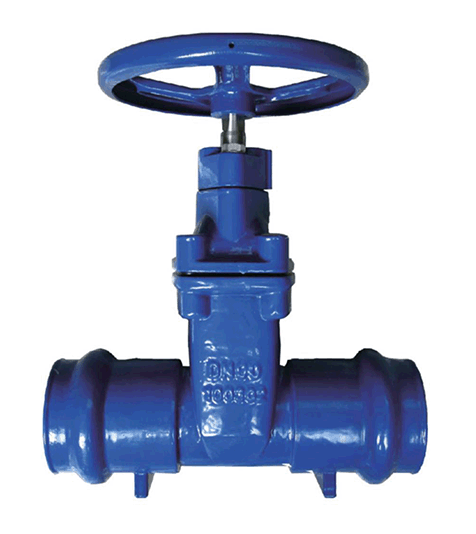

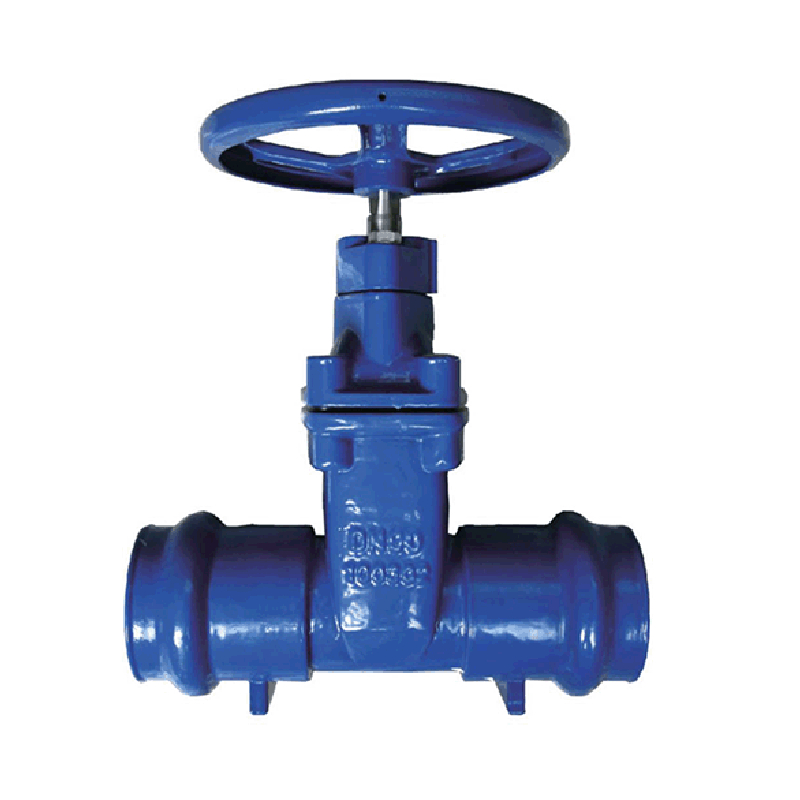

Socket End Resilient Gate valve

Socket End Resilient Gate valve

1. Design and manufacture:BS5150/AWWA C509/DIN 3352.
2. Face to face dimensions: ISO 5752.
3. Test and inspection: API 598EN12266.
4. Size up to 12".





PDF Download

Details

Tags

Standards



  • 1. Design and manufacture:BS5150/AWWA C509/DIN 3352.
  • 2. Face to face dimensions: ISO 5752.
  • 3. Test and inspection: API 598EN12266..
  • 4. Size up to 12".

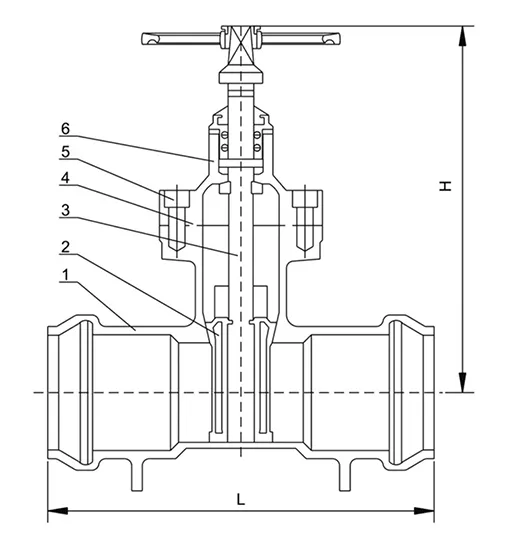

Materials



No. Part Material No. Part Material
1 Body C.I./D.I 4 Sealing Ring NBR
2 Wedge C.I./D.I. 5 Bolt&Nut S.S./Steel+zinc
3 Stem S.S. 6 Bonnet C.I./D.I.



Dimensions



DN

40

50

65

80

100

125

150

200

250

300

L

240

250

270

280

300

325

350

400

450

500

H

245

278

302

330

337

430

497

600

711

796
