Portable Cord

Portable Cord

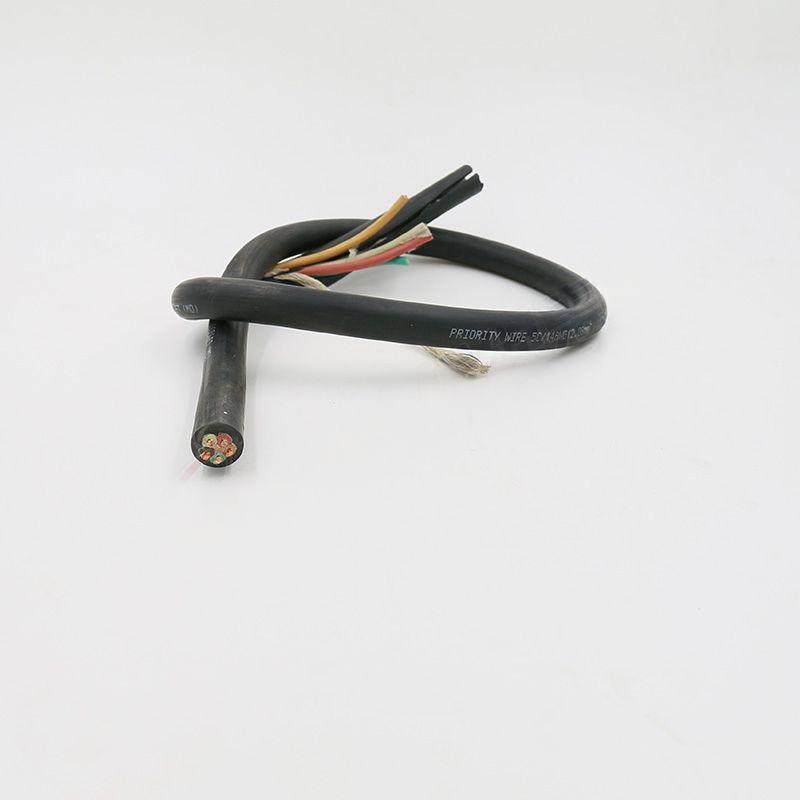

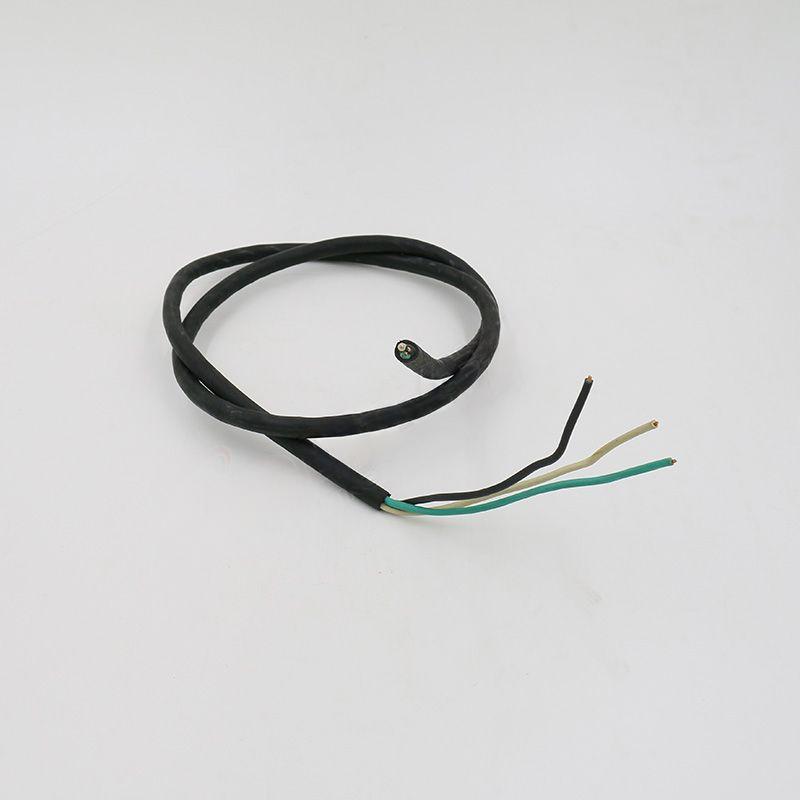

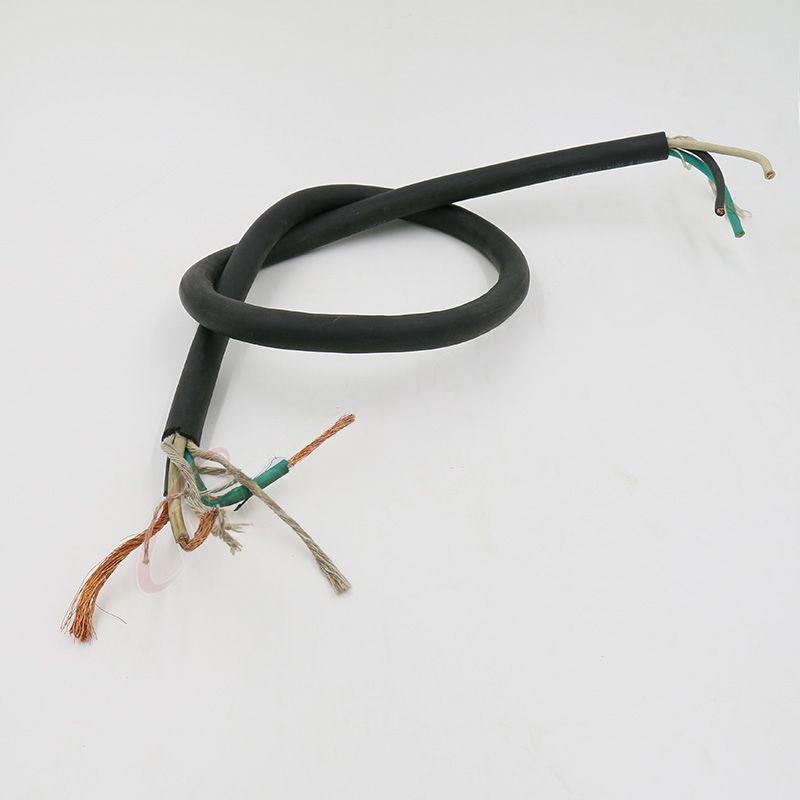

The flexible copper conductor is insulated with ethylene-propylene rubber (EPR).Two, three or four insulated conductors are cabled together with filler and sheathed with chlorinated polyethylene.





PDF Download

Details

Tags

Product details



Application: This product is used for industry equipment, heavy tools, battery charges, portable lights and power extensions.It is suitable for continuous submersion in water.

Rated Voltage: 600V SOOW.

Operating Temperature: Max permissible continuous operating temperature of conductor -40℃-

90℃.

Bending Radius: 5D, D = Actual outer diameter of cable (mm)

Standard: UL62 or other standards required by customers.

Packing: Coil, Steel/wooden reel, wooden reel or steel reel.



Type, Description and Application



Type

Description

Application

SOOW

600V EPR insulated chlorinated polyethylene sheathed oil resistant flexible cable, extra-heavy type

For industry equipment, heavy tools, charges, illumination and power.



Supply Range



Type

Rated Voltage(V)

No of Cores

Size(AWG)

SOOW

600

2 to 5 and above

2 to 4

18 to 6

4 to 2



Technical Characteristics, Type SOOW



No of

Cores

Size

Stranding

Nominal Insulation Thickness

Nominal

Sheath

Thickness

Approx. Overall Diameter In./mm



AWG

mm2

No/AWG

No/mm

mil

mm

mil

mm

Calculated

Max

3

2

4

18

18

18

0.824 0.824

0.824

16/30

16/30

16/30

16/0.254 16/0.254 16/0.254

30

30

30

0.76

0.76

0.76

60

60

60

1.52

1.52

1.52

0.34/8.64 0.36/9.14 0.39/9.78

0.39/9.78 0.40/ 10.16 0.43/ 10.92

5

2

3

18

16

16

0.824 1.31

1.31

16/30

26/30

26/30

16/0.254 26/0.254 26/0.254

30

30

30

0.76

0.76

0.76

80

60

60

2.03

1.52

1.52

0.46/ 11.68 0.36/9.27 0.39/9.78

0.51/ 12.95 0.41/ 10.41 0.43/ 10.92

4

5

2

16

16

14

1.31

1.31

2.08

26/30

26/30

41/30

26/0.254 26/0.254 41/0.254

30

30

45

0.76

0.76

1.14

60

80

80

1.52

2.03

2.03

0.41/ 10.41 0.49/ 12.45 0.49/ 12.57

0.46/ 11.68 0.55/ 13.97 0.55/ 13.97

3

4

5

14

14

14

2.08

2.08

2.08

41/30

41/30

41/30

41/0.254 41/0.254 41/0.254

45

45

45

1.14

1.14

1.14

80

80

95

2.03

2.03

2.41

0.52/ 13.21 0.56/ 14.22 0.63/ 16.00

0.57/ 14.60 0.62/ 15.75 0.71/ 17.91

2

12

3.31

65/30

65/0.254

45

1.14

95

2.41

0.56/ 14.35

0.63/ 15.88

3

4

12

12

3.31

3.31

65/30

65/30

65/0.254 65/0.254

45

45

1.14

1.14

95

95

2.41

2.41

0.59/ 14.99 0.64/ 16.26

0.66/ 16.64 0.71/ 18.03

5

2

3

12

10

10

3.31

5.26

5.26

65/30 104/30 104/30

65/0.254 104/0.254 104/0.254

45

45

45

1.14

1.14

1.14

95

95

95

2.41

2.41

2.41

0.70/ 17.78 0.61/ 15.62 0.65/ 16.51

0.77/ 19.56 0.69/ 17.40 0.72/ 18.29

4

5

2

10

10

8

5.26

5.26

8.37

104/30 104/30 65/26

104/0.254 104/0.254 65/0.254

45

45

60

1.14

1.14

1.52

95

95

110

2.41

2.41

2.79

0.70/ 17.78 0.76/ 19.30 0.78/ 19.81

0.77/ 19.68 0.84/21.34 0.88/22.35

3

4

5

8

8

8

8.37

8.37

8.37

65/26

65/26

65/26

65/0.254 65/0.254 65/0.254

60

60

60

1.52

1.52

1.52

110

125

125

2.79

3.18

3.18

0.84/21.21 0.93/23.62 1.00/25.40

0.93/23.62 1.05/26.67 1.15/29.21

Note :*6-core and above also can be designed according to customers’ requirement.
