MC ( Type XHHW-2 )

MC ( Type XHHW-2 )

Type XHHW-2 MC cable is suitable for use as branch, feeder and service power distribution. It is suitable for use in wet or dry locations at temperature not to exceed 90℃.





PDF Download

Details

Tags

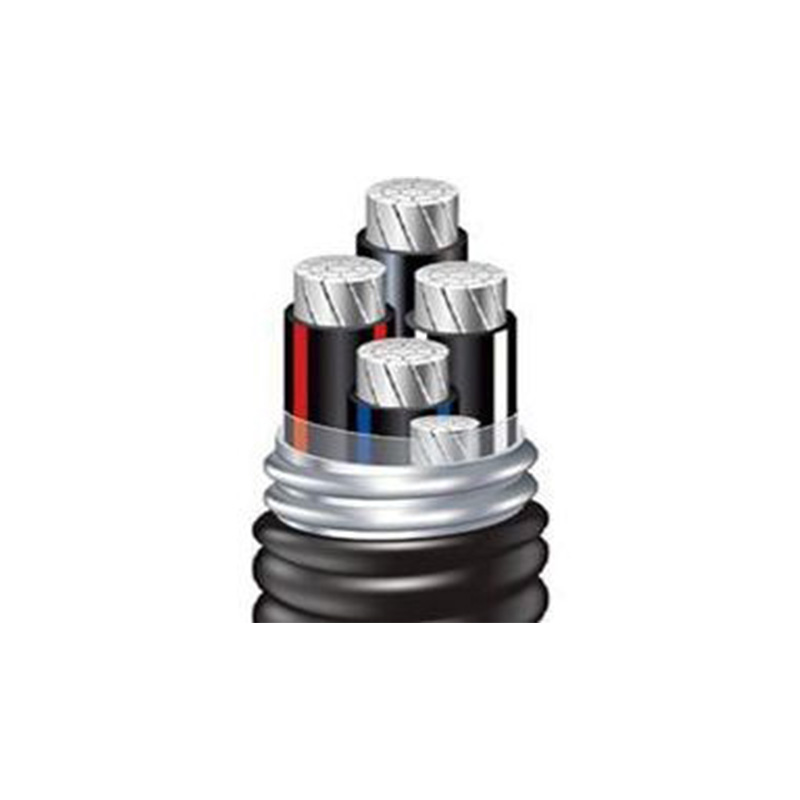

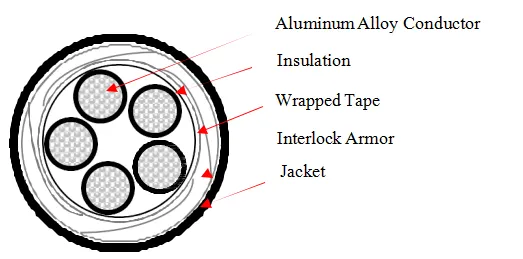

8000 Series Aluminum Alloy Conductor Type XHHW-2 Metal Clad（MC）Cable

If it should be directly buried in the earth, MC cable with PVC sheath is an optimal choice. Maximum voltage rating for XHHW-2 applications is 600 V.



Features
  • Nominal voltage：600V.
  • 8000 series aluminum alloy conductor.
  • Cross-linked Polyethylene (XLPE) Insulated Singles Rated XHHW-2.
  • The insulated conductors and a bare ground are assembled together.
  • An aluminum alloy interlocked armor.
  • PVC sheath is optional.
  • Meets or exceeds industry requirements of UL44 and UL 1569 or other standards required by Customers.



8000 Series Aluminum Alloy Conductor Type XHHW-2 Metal Clad（MC）Cable

Conductor Size*



Ground

Insulation Thickness

Armor** Thickness

Sheath Thickness

Approximate

Diameter over Armor

Approximate

Diameter over Sheath

AWG or

kcmil

AWG

mm

mm

mm

mm

mm

3 conductors with a bare ground

6

6

1.14

0.65

1.27

22.3

24.8

4

6

1.14

0.65

1.27

25.0

27.5

2

6

1.14

0.65

1.27

28.4

30.9

1

4

1.4

0.65

1.27

31.6

34.1

1/0

4

1.4

0.65

1.27

33.9

36.4

2/0

4

1.4

0.65

1.27

36.4

38.9

3/0

4

1.4

0.65

1.27

39.2

41.7

4/0

2

1.4

0.65

1.52

42.4

45.4

250

2

1.65

0.75

1.52

46.5

49.5

300

2

1.65

0.75

1.52

49.5

52.5

350

2

1.65

0.75

1.52

52.3

553

400

1

1.65

0.75

1.52

55.0

58.0

500

1

1.65

0.75

1.52

59.7

62.7

600

1

2.03

0.75

1.91

66.3

70.1

700

1/0

2.03

0.75

1.91

70.3

74.1

750

1/0

2.03

0.75

1.91

72.2

76.0

1000

1/0

2.03

0.75

1.91

81.5

85.3

4 conductors with a bare ground

6

6

1.14

0.65

1.27

24.2

26.7

4

6

1.14

0.65

1.27

27.3

29.8

2

6

1.14

0.65

1.27

31.1

33.6

1

4

1.4

0.65

1.27

34.6

37.1

1/0

4

1.4

0.65

1.27

37.2

39.7

2/0

4

1.4

0.65

1.27

39.9

42.4

3/0

4

1.4

0.75

1.52

43.1

46.1

4/0

2

1.4

0.75

1.52

46.7

49.7

250

1

1.65

0.75

1.52

51.2

54.2

300

1

1.65

0.75

1.52

54.7

57.7

350

1/0

1.65

0.75

1.52

57.8

60.8

400

1/0

1.65

0.75

1.52

60.8

63.8

500

2/0

1.65

0.75

1.52

66.0

69.8

600

2/0

2.03

0.75

1.91

73.5

77.3

700

2/0

2.03

0.75

1.91

77.9

81.7

750

3/0

2.03

0.75

1.91

80.0

83.8

All values are nominal and subject to correction.



  • The individual conductor is as same as type XHHW-2.
  • Color Code:
  • 3 Conductors White – Black - Red

4 Conductors White – Black – Red – Blue Ground Bare

** Aluminum alloy interlocked armor.



  • The individual conductor is as same as type XHHW-2.
  • Color Code:
  • 3 Conductors White – Black - Red

4 Conductors White – Black – Red – Blue Ground Bare

** Aluminum alloy interlocked armor.
