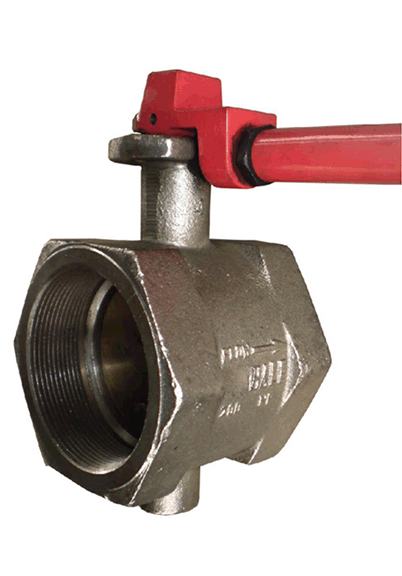

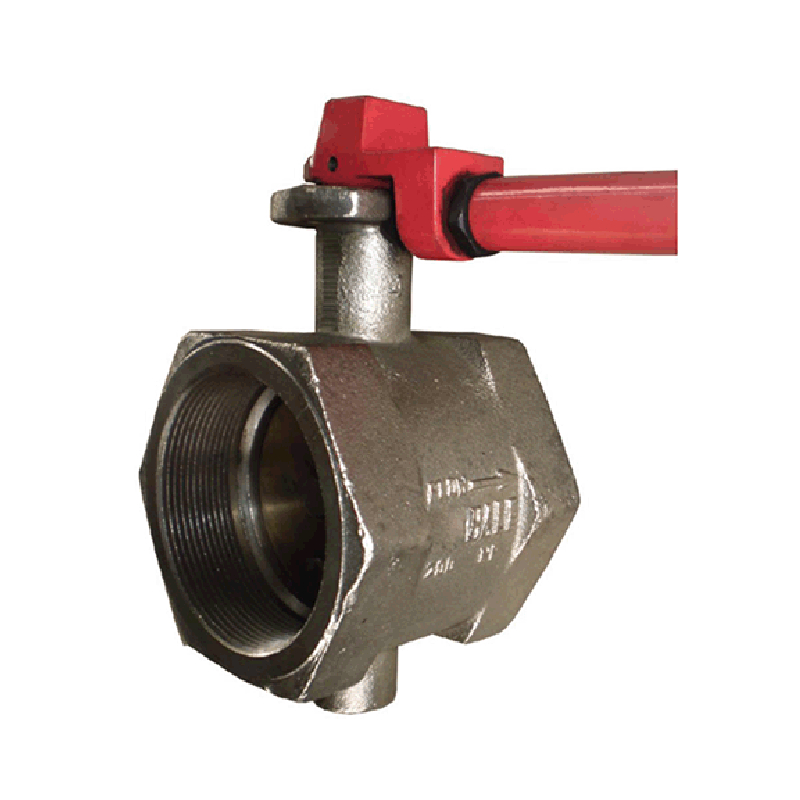

1.Design and manufacture: Manufacturer standard.
2.End connection: ASME B 1.20.3.
3.Test and inspection: API 598EN12266.
4.Size 2" - 6”.





PDF Download

Details

Tags

Standards



  • 1.Design and manufacture: Manufacturer standard.
  • 2.End connection: ASME B 1.20.3.
  • 3.Test and inspection: API 598EN12266.
  • 4.Size 2" - 6”.

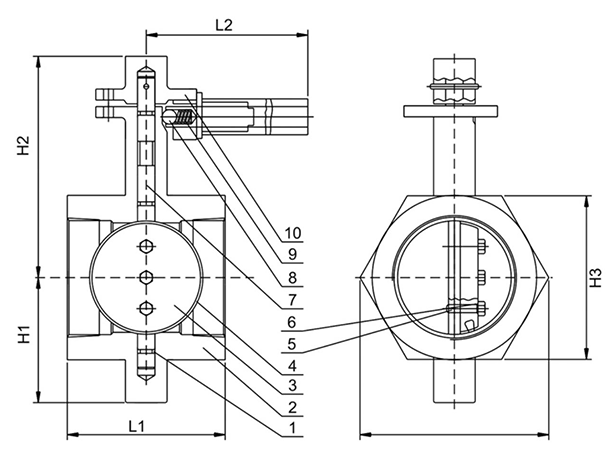

Materials



1

Shaft "O" ring

NBR/EPDM

2

Body

D.I.+ Nickel plated

3

Disc

Bronze

4

Disc "O" ring

NBR/EPDM/Viton

5

Disc bolt

Stainless steel

6

"O" ring

NBR/EPDM/Viton

7

Shaft

Stainless steel

8

Lever ball

Ball bearing steel

9

Lever spring

Stainless steel

10

Lever

Ductile iron



Dimensions



DN

HI

H2

H3

LI

L2

L3

50

57.2

120.7

76.2

108

203.2

88

80

69.9

154

103.2

123.8

203.2

119

100

93.7

161.9

134.9

130.2

203.2

155.8

150

120.7

238.1

196.9

177.8

330.2

277.4
