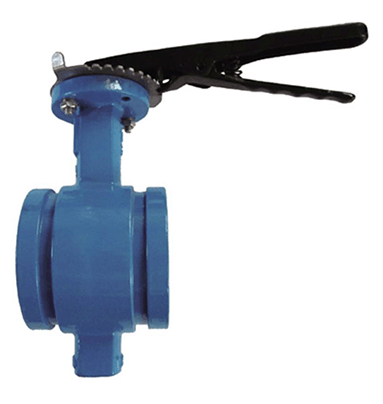

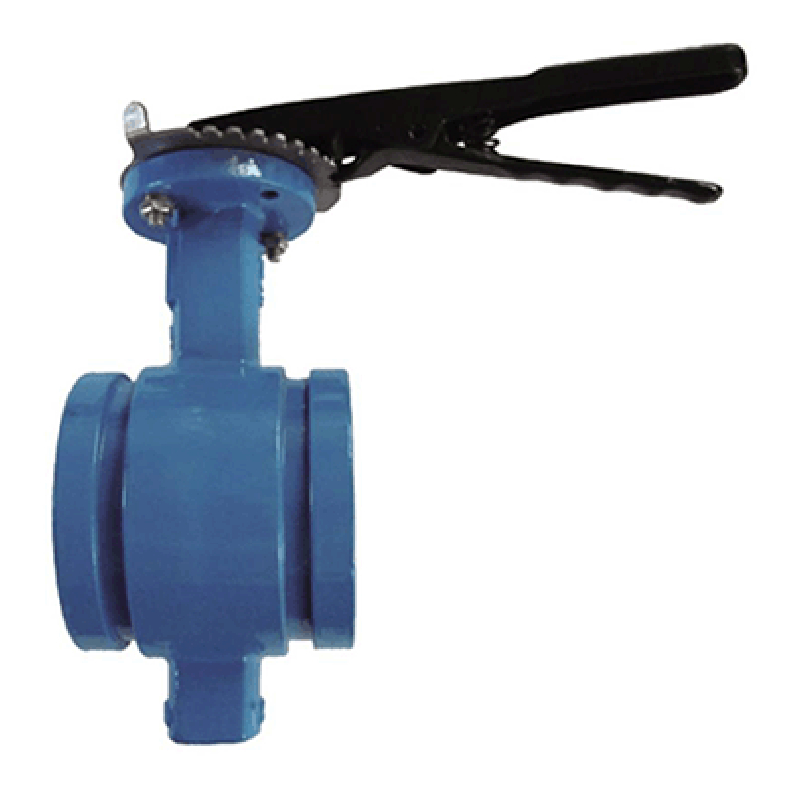

Grooved End Butterfly Valve

Grooved End Butterfly Valve

1. Design and manufacture: MSS SP-67.
2. Groove end: AWWA C606.
3. Top flange dimensions: ISO 5211.
4. Face to face dimensions: ASME B16.10.
5. Test and inspection: API 598.
6. Size up to 12".





PDF Download

Details

Tags

Standards



  • 1. Design and manufacture: MSS SP-67.
  • 2. Groove end: AWWA C606.
  • 3. Top flange dimensions: ISO 5211.
  • 4. Face to face dimensions: ASME B16.10.
  • 5. Test and inspection: API 598.
  • 6. Size up to 12".



Materials



1

Body

D.I.ASTM A536

2

Disc

D.I.ASTM A536+EPDM

3

Bushing

PTFE / AI Bronze

4

Stem

Stainless steel

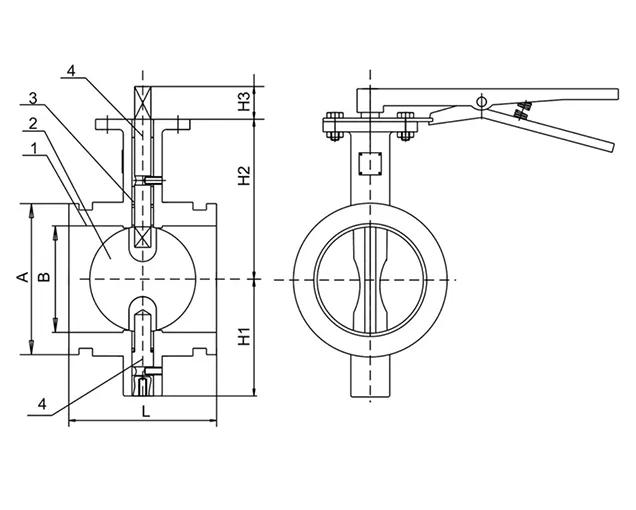

Dimensions



DN

H1

H2

H3

L

A

B

50

74

121

30

90

67

51

65

74

126

30

97

73

62.5

80

89

132

30

97

97

77

100

94

148.7

30

116

122.5

102

125

108

172

30

134

141.3

126

150

123

183

30

134

175

150

200

149

205

41

148

232

202

250

186

250

41

160

286

253

300

213

275

41

166

336.5

303
