Flexible Rubber Cable

Flexible Rubber Cable

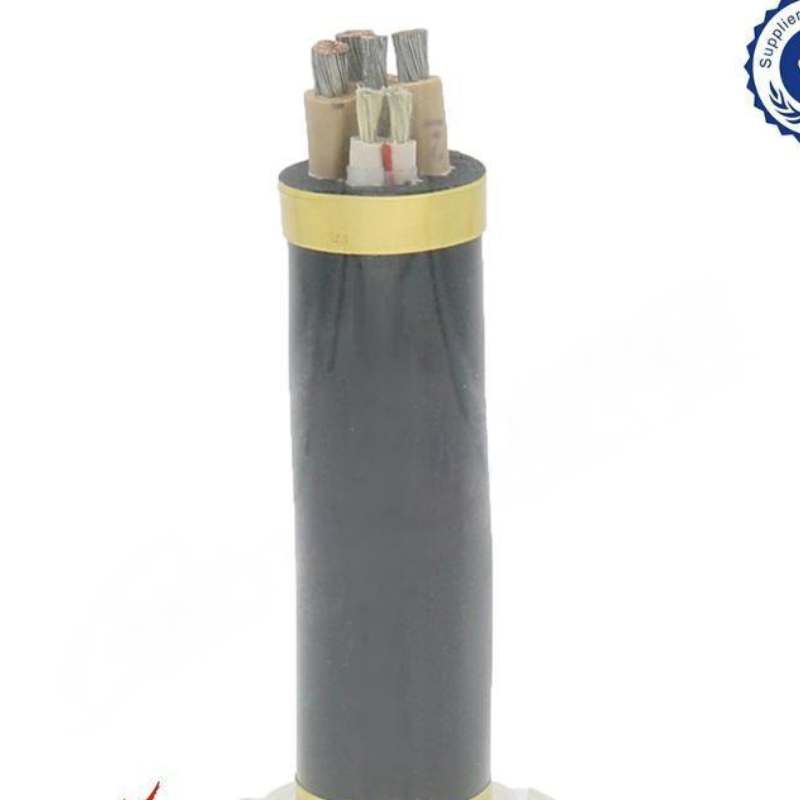

1-core: The copper conductor is insulated with natural rubber and sheathed with natural rubber or chloroprene rubber

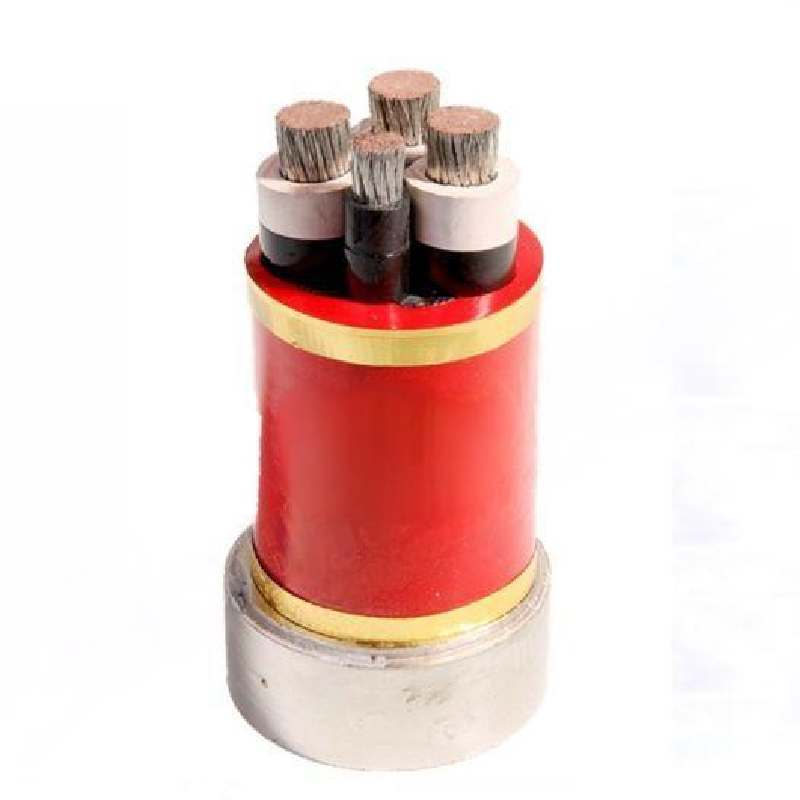

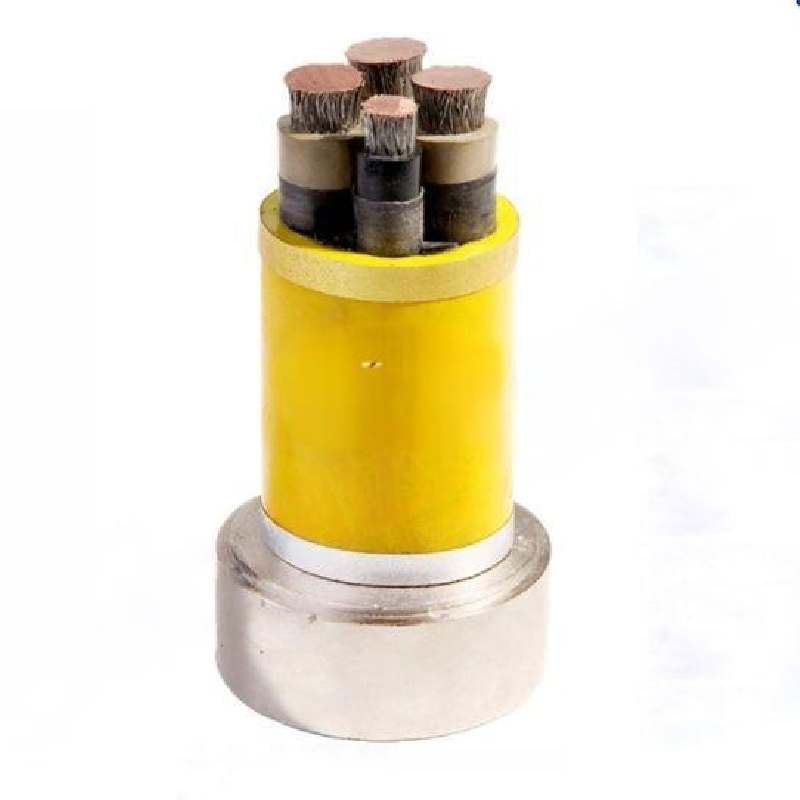

Multi-core: The copper conductor is insulated with natural rubber. Two to six insulated conductors are cabled together with extruded rubber filler,and sheathed with natural rubber or chloroprene rubber.





PDF Download

Details

Tags



Product details

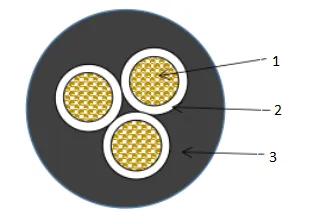

1. Copper conductor

2. EPR insulation

3. CPE sheath



Application: This product is suitable for power supply to power appliances,home appliances and movable field electric equipment at U0/ U 450/750V or less.

Operating Temperature: Max permissible continuous operating temperature of conductor shall not exceed 65oC.

Bending Radius: 5D,D = Actual outer diameter of cable (mm)

Standard: IEC245,GB5013 or other standards required by customers.

Packing: Steel/wooden reel,,wooden reel or steel reel.



Type, Description and Application Range



Type

Description

Application Range



YZ

Natural rubber insulated and natural rubber sheathed medium duty flexible cable

For movable electric appliances and tools.Type W is suitable for outdoor condition or place where oil exists.

YZW

Natural rubber insulated and chloroprene rubber sheathed medium duty flexible cable

For movable electric appliances,able to

bear larger mechanical force.Type W is

suitable for outdoor condition or place

where oil exists.

YC

Natural rubber insulated and natural rubber sheathed heavy duty flexible cable



YCW

Natural rubber insulated and chloroprene rubber sheathed heavy duty flexible cable
Supply Range



Type

Rated Voltage V

No of Cores

Nominal Area of Conductor sq.mm

YZ, YZW

300/300

2, 3, 4, 5, 6

0.75 to 6



YC, YCW



450/750

1, 3, 4

2

5

1.5 to 150

1.5 to 95

1.5 to 25

*Flexible rubber cable (Type YZ, YZW, YC and YCW) with 3+1 cores are also in our supply ranges.



Technical Characteristics



EPR Insulated and EPR or CPE Sheathed Light-duty Flexible Cable Type YZ (245 IEC 53), YZW (245 IEC 57)

No of Cores

x Nominal

Area of

Conductor

Stranding No/ Dia

Nominal Insulation Thickness

Nominal

Sheath

Thickness

Average

Overall Dia

mm

Max DC

Conductor

resistance at

20C ( Q/km)

Approx weight of cable (kg/km)

No x sq.mm

No/mm

mm

mm

Min

Max

Copper

Tinned

copper

YZ

YZW

2X0.75

2X1.0

2X1.5

2X2.5

2X4.0

2X6.0

24/0.20 32/0.20 30/0.25 49/0.25 77/0.26 84/0.30

0.6

0.6

0.8

0.9

1.0

1.0

0.8

0.9

1.0

1.1

1.2

1.3

6.0

6.6

8.0

9.5

10.6

11.8

8.2

8.8

10.5

12.5

13.7

15.1

26.0

19.5

13.3

7.98

4.95

3.30

26.7

20.0

13.7

8.21

5.08

3.39

-

-

-

-

243

300

71

85

122

172

250

311

3X0.75

3X1.0

3X1.5

3X2.5

3X4.0

3X6.0

24/0.20 32/0.20 30/0.25 49/0.25 77/0.26 84/0.30

0.6

0.6

0.8

0.9

1.0

1.0

0.9

0.9

1.0

1.1

1.2

1.3

6.5

7.0

8.6

10.0

11.3

12.6

8.8

9.2

11.0

13.0

14.5

16.1

26.0

19.5

13.3

7.98

4.95

3.30

26.7

20.0

13.7

8.21

5.08

3.39

-

-

-

-

304

389

91

104

154

216

317

403

4X0.75

4X1.0

4X1.5

4X2.5

4X4.0

4X6.0

24/0.20 32/0.20 30/0.25 49/0.25 77/0.26 84/0.30

0.6

0.6

0.8

0.9

1.0

1.0

0.9

0.9

1.1

1.2

1.3

1.4

7.1

7.6

9.6

11.0

12.7

14.0

9.6

10.0

12.5

14.0

16.2

17.9

26.0

19.5

13.3

7.98

4.95

3.30

26.7

20.0

13.7

8.21

5.08

3.39

-

-

-

-

380

485

110

126

192

271

392

490

5X0.75

5X1.0

5X1.5

5X2.5

5X4.0

5X6.0

24/0.20 32/0.20 30/0.25 49/0.25 77/0.26 84/0.30

0.6

0.6

0.8

0.9

1.0

1.0

1.0

1.0

1.1

1.3

1.4

1.6

8.0

8.5

10.5

12.5

14.1

15.7

11.0

11.5

13.5

15.5

17.9

20.0

26.0

19.5

13.3

7.98

4.95

3.30

26.7

20.0

13.7

8.21

5.08

3.39

-

-

-

-

459

594

134

153

231

334

472

615

6X0.75

6X1.0

6X1.5

6X2.5

6X4.0

6X6.0

24/0.20 32/0.20 30/0.25 49/0.25 77/0.26 84/0.30

0.6

0.6

0.8

0.9

1.0

1.0

1.0

1.1

1.2

1.4

1.5

1.7

8.2

8.7

10.9

13.2

15.5

17.4

10.7

11.5

14.0

16.9

19.8

22.1

26.0

19.5

13.3

7.98

4.95

3.30

26.7

20.0

13.7

8.21

5.08

3.39

151

174

263

409

556

716

156

179

270

418

567

730



 EPR Insulated and EPR or CPE Sheathed Light-duty Flexible Cable Type YC, YCW (245 IEC 66)

No of Cores

x Nominal

Area of

Conductor

Stranding No/ Dia

Nominal Insulation Thickness

Nominal Sheath Thickness

mm

Average

Overall Dia



mm

Max DC

Conductor

resistance at

20C

( Q/km)

Approx

weight of

cable

(kg/km)



One Layer

Double

layers

No x sq.mm

No/mm

mm

Inner

Outer

Min

Max

Copper

Tinned

copper

YZ

YZW

3X25

3X35

3X50

3X70

3X95

3X120

3X150

196/0.40 276/0.40 396/0.40 360/0.50 475/0.50 608/0.50 756/0.50

1.4

1.4

1.6

1.8

1.8

1.8

2.0

3.8

4.1

4.5

4.8

5.3

5.6

6.0

1.5

1.6

1.8

1.9

2.1

2.2

2.4

2.3

2.5

2.7

2.9

3.2

3.4

3.6

26.5

29.5

31.5

38.5

44.0

48.0

53.0

34.0

38.0

43.5

49.5

54.0

59.0

66.5

0.780

0.554

0.386

0.272

0.206

0.161

0.129

0.795

0.565

0.393

0.277

0.210

0.164

0.132

1528

2207

2701

3508

4581

5500

6854

1588

2297

2805

3612

4731

5650

7014

4X1.5

4X2.5

4X4.0

4X6.0

4X10

4X16

30/0.25 49/0.25 77/0.26 84/0.30 84/0.40 126/0.40

0.8

0.9

1.0

1.0

1.2

1.2

1.7

1.9

2.0

2.3

3.4

3.6

-

-

-

-

-

1.4

-

-

-

-

-

2.2

10.5

12.5

14.5

16.5

21.5

24.5

13.5

15.5

18.0

22.0

28.0

32.0

13.3

7.98

4.95

3.30

1.91

1.21

13.7

8.21

5.09

3.39

1.95

1.24

212

298

408

566

854

1147

225

308

430

596

884

1187

4X25

4X35

4X50

4X70

4X95

4X120

4X150

196/0.40 276/0.40 396/0.40 360/0.50 475/0.50 608/0.50 756/0.50

1.4

1.4

1.6

1.8

1.8

1.8

2.0

4.1

4.4

4.8

5.2

5.9

6.0

6.5

1.6

1.7

1.9

2.0

2.3

2.4

2.6

2.5

2.7

2.9

3.2

3.6

3.6

3.9

29.5

33.0

38.0

43.0

49.0

53.0

59.0

37.5

42.0

48.5

55.0

60.5

65.5

74.0

0.780

0.554

0.386

0.272

0.206

0.161

0.129

0.795

0.565

0.393

0.277

0.210

0.164

0.132

1953

2543

3445

4510

5958

7100

8919

2055

2643

3550

4690

6120

7280

9019

5X1.5

5X2.5

5X4.0

5X6.0

5X10

5X16

5X25

30/0.25 49/0.25 77/0.26 84/0.30 84/0.40 126/0.40

0.8

0.9

1.0

1.0

1.2

1.2

1.4

1.8

2.0

2.2

2.3

3.6

3.9

4.4

-

-

-

-

-

1.5

1.7

-

-

-

-

-

2.4

2.7

11.5

13.5

16.0

18.0

24.0

27.0

32.5

15.0

17.0

19.3

24.5

31.0

35.5

41.5

13.3

7.98

4.95

3.30

1.91

1.21

0.780

13.7

8.21

5.09

3.39

1.95

1.24

0.795

247

359

520

711

1225

1602

2380

267

379

550

750

1275

1662

2475
