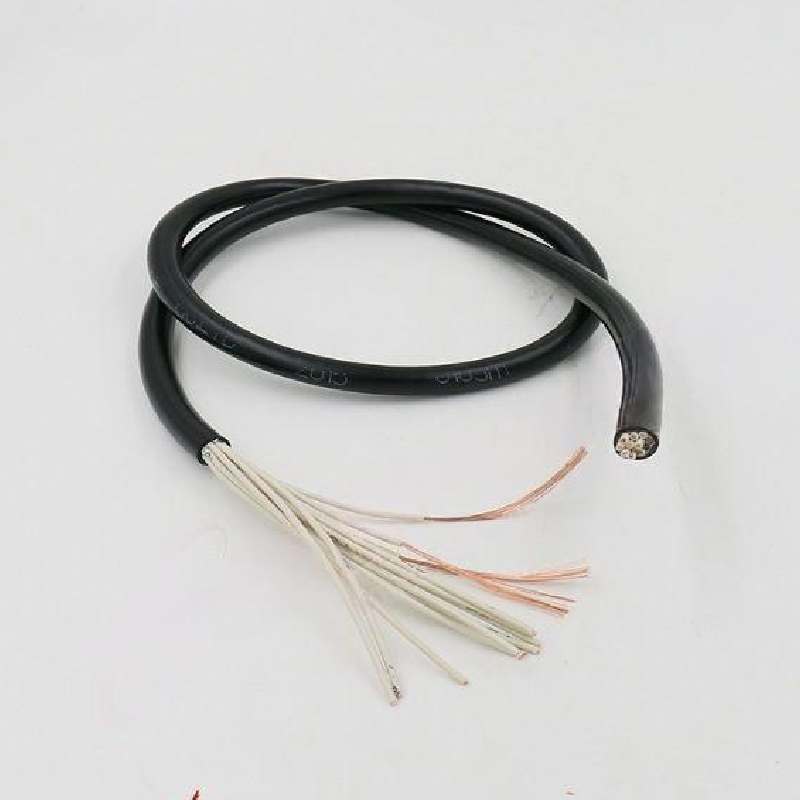

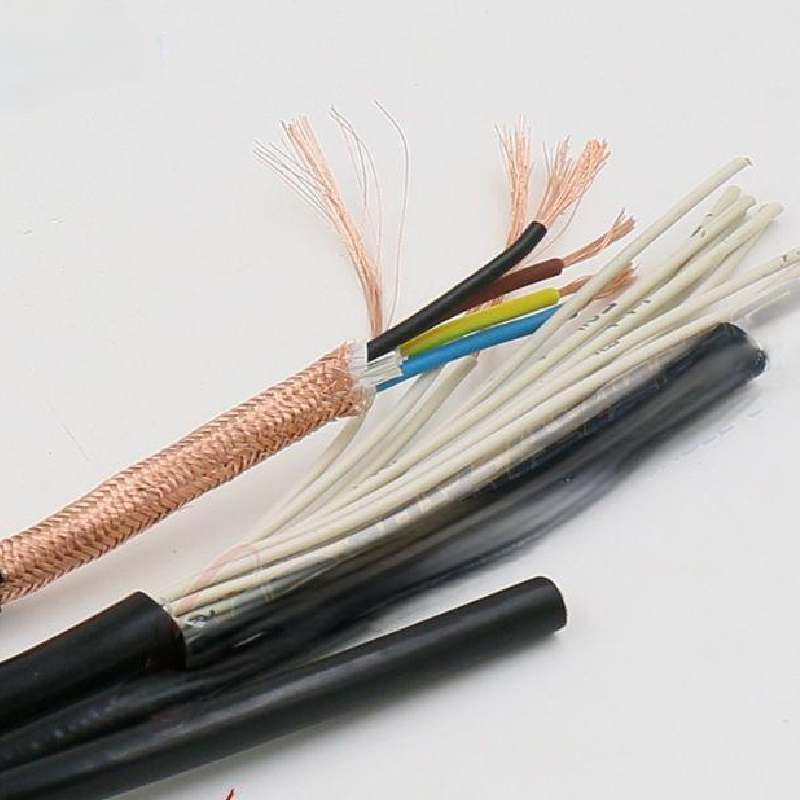

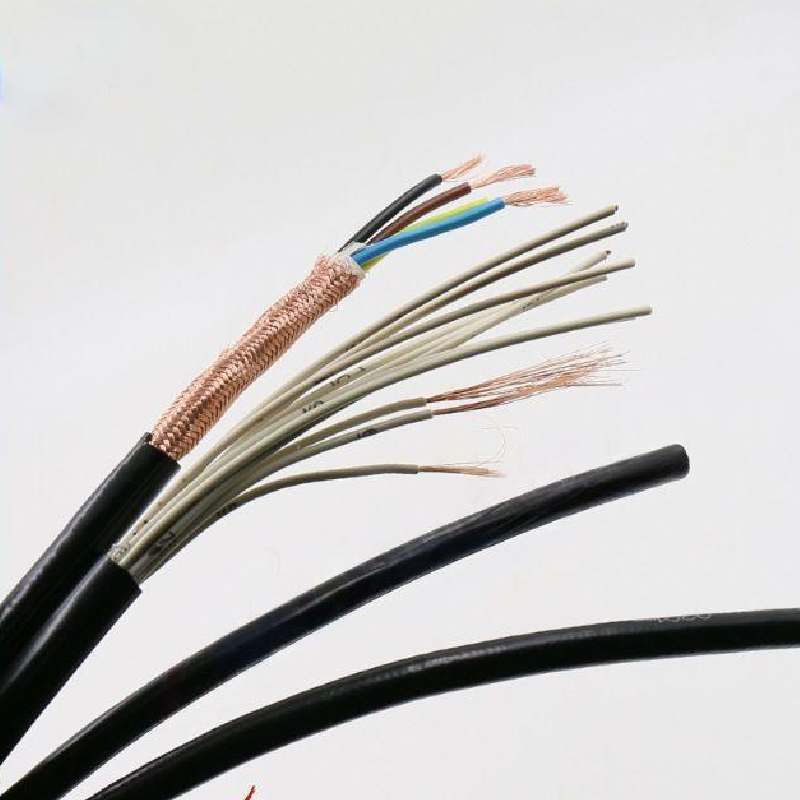

Copper or Aluminum Conductor/PVC Insulated Single Wire

This product is suitable for rated voltage AC U0/U 450/750V, lighting, electrical appliances, instrumentation and telecommunications equipment, with copper or aluminum conductor, PVC insulated cables (wires)

CONTACT NOW PDF Download

Details

Tags

Features

1, Operating Voltage: U0 / U for 450/750 and 300/500

2, Operating Temperature: for use as a long time, 90 wire should not exceed 90℃, the others shall not exceed 70 ℃.

3, Laying Temperatures: should not be under 0 ℃.

4, Bending Radius: for D≤25mm, it should not be less than 4D, for D≥25mm,it shall be not less than 6D

227 IEC01 (Cu/PVC), (Al/PVC) 450/750V
Nominal Cross Section Area mm²	Strands no./strands Wire Diameter mm	Nominal Insulation thickness mm	Approx Cable OD mm	Max. Copper Conductor DC Resistance at 20°C Ω/km	Min Insulated Resistance at 70°C MΩ.km (Copper Conductor)	Approx cable weight kg/km
Nominal Cross Section Area mm²	Strands no./strands Wire Diameter mm	Nominal Insulation thickness mm	Approx Cable OD mm	Max. Copper Conductor DC Resistance at 20°C Ω/km	Min Insulated Resistance at 70°C MΩ.km (Copper Conductor)	Copper Conductor	Aluminum Conductor
1.5	1/1.38	0.7	2.78	12.2	0.011	19.5
1.5	7/0.52	0.7	2.96	12.1	0.010	19.5
2.5	1/1.78	0.8	3.38	7.41	0.010	30.8	15.4
2.5	7/0.68	0.8	3.64	7.41	0.009	30.8	15.4
4	1/2.25	0.8	3.85	4.61	0.0085	45.6	21.0
4	7/0.85	0.8	4.05	4.61	0.0077	45.6	21.0
6	71/2.76	0.8	4.36	3.08	0.0070	65.3	28.2
6	7/1.04	0.8	4.72	3.08	0.0065	65.3	28.2
10	7/1.35	1	6.05	1.83	0.0065	111	49.0
16	7/1.70	1	7.1	1.15	0.0050	169	69
25	7/2.14	1.2	8.82	0.727	0.0050	265	108
35	7/2.52	1.2	9.96	0.524	0.0040	359	140
50	19/1.78	1.4	11.7	0.387	0.0045	485	190
70	19/2.14	1.4	13.5	0.268	0.0035	685	258
95	19/2.52	1.6	15.8	0.193	0.0035	946	354
120	37/2.03	1.6	17.4	0.153	0.0032	1181	433
150	37/2.25	1.8	19.4	0.124	0.0032	1453	534
185	37/2.52	2	21.6	0.0991	0.0032	1821	668
240	61/2.25	2.2	24.6	0.0754	0.0032	2383	869
300	61/2.52	2.4	27.5	0.0601	0.003	2983	1082
400	61/2.90	2.6	30.8	0.0470	0.0028	3800	1369
