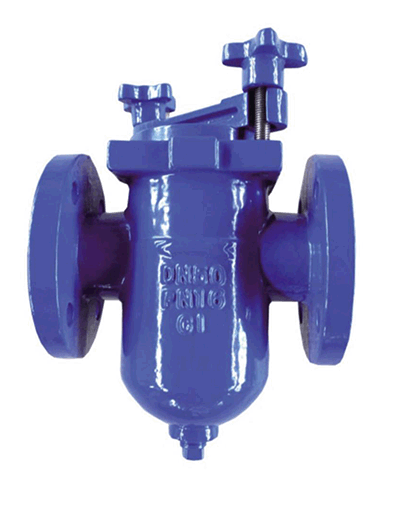

Basket Strainer

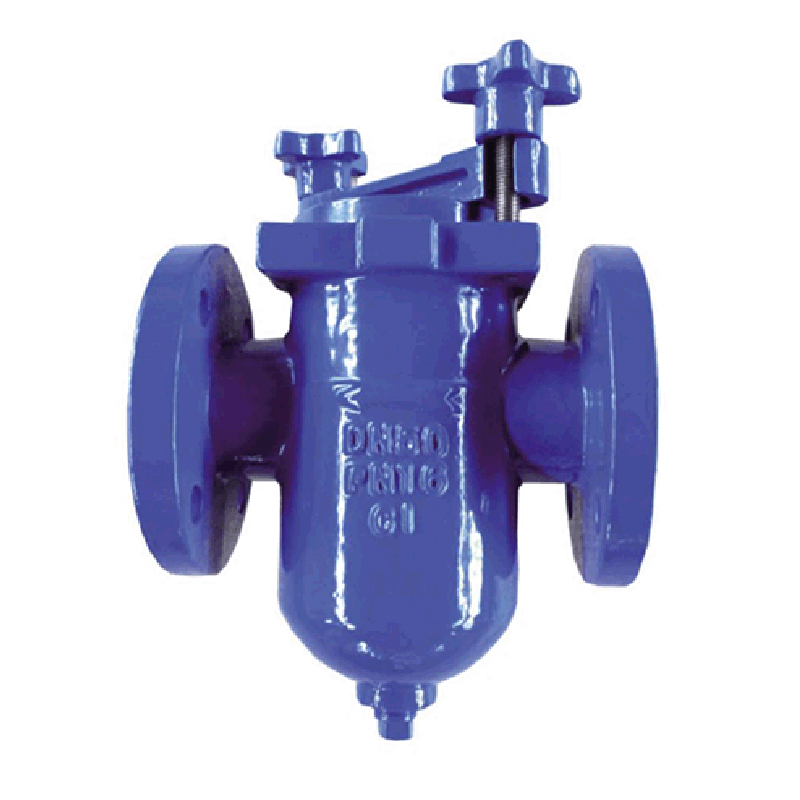

Basket Strainer

1. Flange dimensions: ASME B16.1/DIN 2533/BS 4504.
2. Face to face dimensions: ASME B16.10/DIN 3201 Fl/BS 2080.
3. Test and inspection: API 598/EN12266.
4. Size up to 20".





PDF Download

Details

Tags

Standards



  • 1. Flange dimensions: ASME B16.1/DIN 2533/BS 4504.
  • 2. Face to face dimensions: ASME B16.10/DIN 3201 Fl/BS 2080.
  • 3. Test and inspection: API 598/EN12266.
  • 4. Size up to 20".



Materials



1

Body

Cast iron / Ductile iron

2

Cover

Cast iron / Ductile iron

3

Screen

Stainless steel

4

Gasket

Graphite

5

Plug

Cast iron / Ductile iron

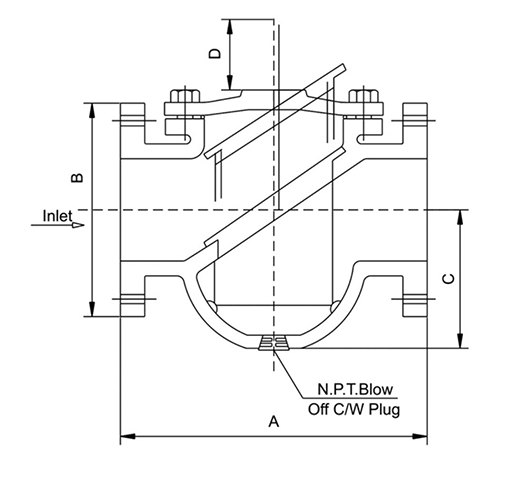

Dimensions



Size

A

B

C

D

N.P.T.

2"

8 1/2

8 3/8

5

5 3/8

1/2

2 1/2"

8 3/4

9 5/8

8 5/16

6 5/16

3/4

3"

9 7/8

11 1/4

6 1/2

8 1/2

3/4

4"

11 1/2

13 1/2

8

9 5/16

1

5"

13 1/8

14 5/8

8

10 1/4

1

6"

14 7/8

15 5/8

8 5/8

11 1/8

1

8"

18 11/16

21

11 3/4

15 9/16

1 1/2

10"

20 1/8

24 1/2

13 3/4

18

1 1/2

12"

26 1/4

29 3/4

16 3/8

23 1/4

2

14"

30 1/4

36 3/8

23 1/4

28 1/8

2

16"

33 1/8

38 3/4

23 1/4

30

2

18"

38 3/8

38

19

35

2

20"

41 1/2

43 5/8

23 1/2

37

2
