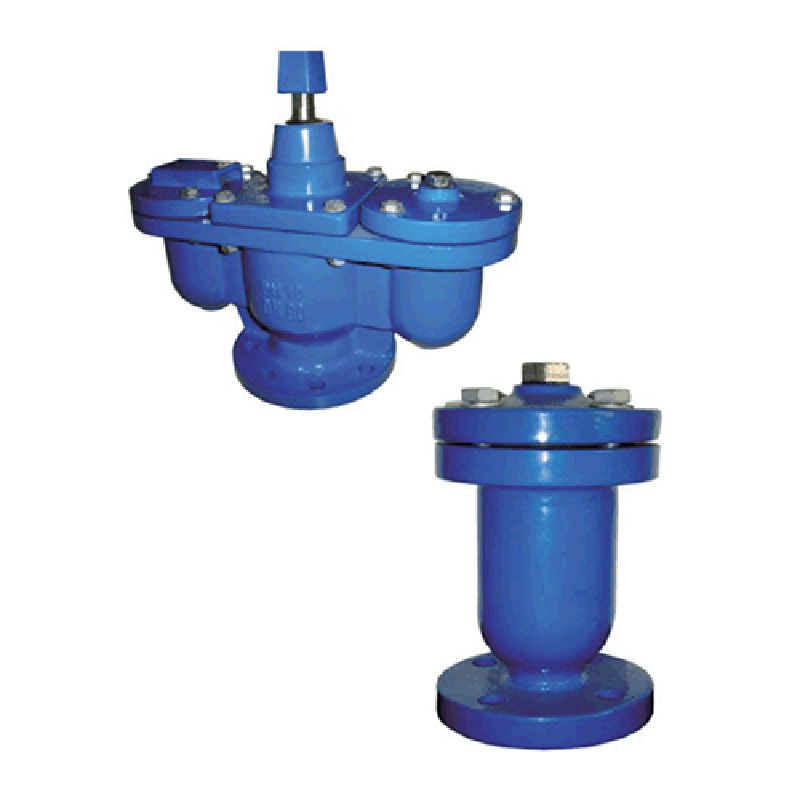

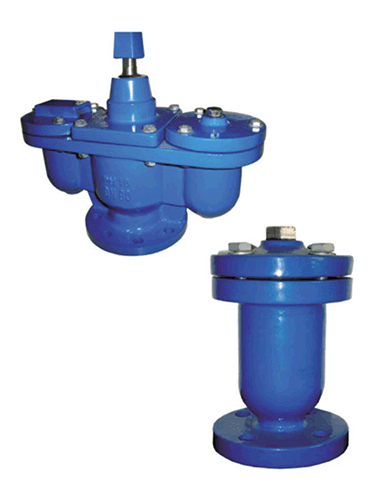

Automatic Air Valve

Automatic Air Valve

1. Flange dimensions: ASME B 16.1/DIN 2533/BS 4504.
2. Test and inspection: API 598/EN12266.
3. Size up to 12".





PDF Download

Details

Tags

Standards



  • 1. Flange dimensions: ASME B 16.1/DIN 2533/BS 4504.
  • 2. Test and inspection: API 598/EN12266.
  • 3. Size up to 12".

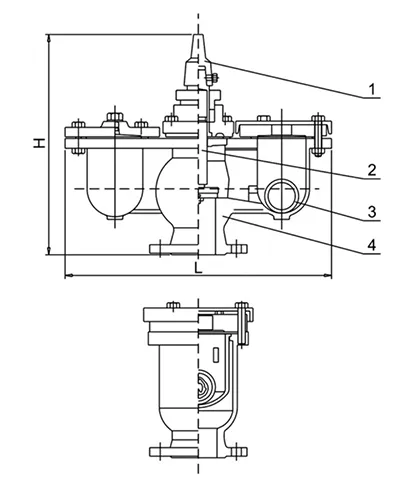

Materials



1

Cover

Cast iron / Ductile iron

2

Spindle

Stainless Steel / Brass

3

Float ball

Cast iron + NBR

4

Bady

Cast iron / Ductile iron



Dimensions




DN

50

80

100

150

200

H

387

387

490

597

679

L

468

468

555

742

850
