8000 Series Aluminium Alloy Conductor Type XHHW-2 Cable

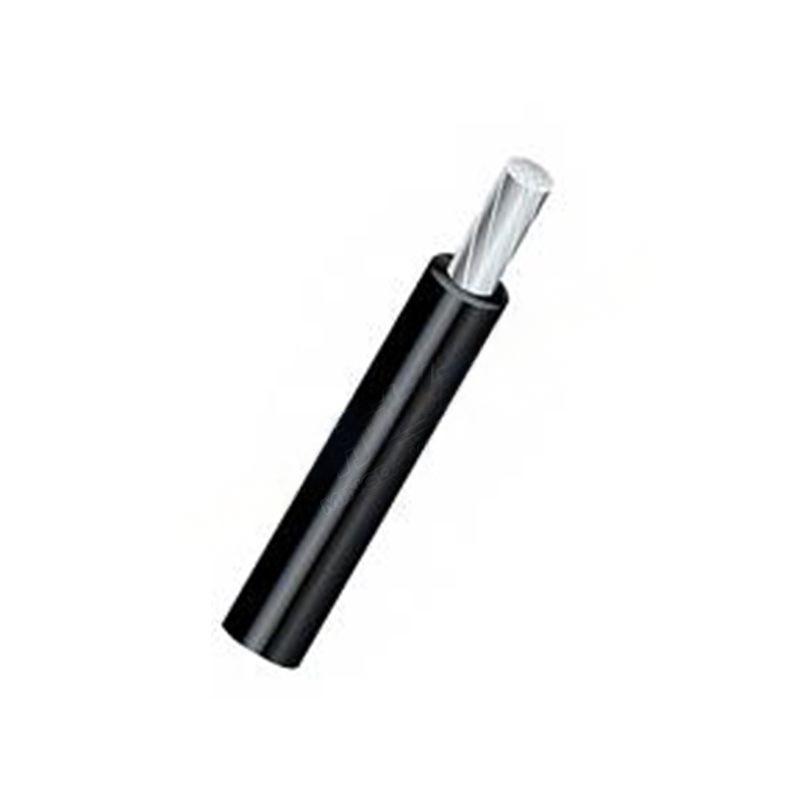

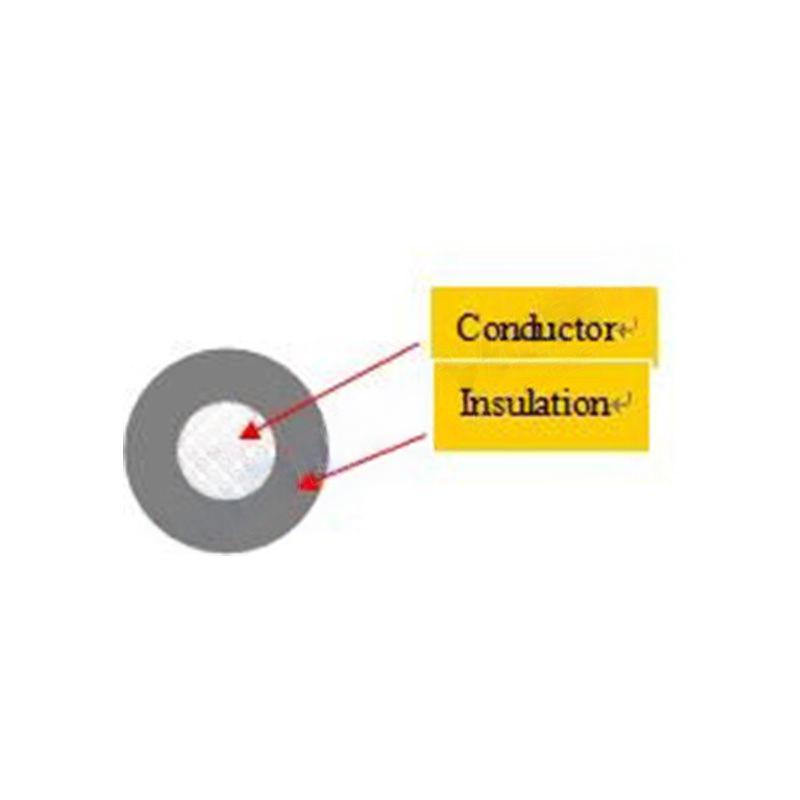

Construction: The stranded compacted 8000 series aluminium alloy conductor is insulated with abrasion, moisture and heat resistant black XLPE.
Application：XHHW-2 conductors are primarily used in conduit or recognized raceways for service, feeders, and branch circuit wiring as specified in the National
Electrical Code. XHHW-2 conductors may be used in wet or dry locations.
Rated Voltage：600V.

CONTACT NOW PDF Download

Details

Tags

Product details

Application： XHHW-2 conductors are primarily used in conduit or recognized raceways for service, feeders, and branch circuit wiring as specified in the National Electrical Code. XHHW-2 conductors may be used in wet or dry locations.

Rated Voltage：600V.

Operating Temperature: Max permissible continuous operating temperature of conductor shall not exceed 90°C.

Standard： UL 44, Federal Specification J-C-30B, ASTM B800 and ASTM B801 or other standards required by customers.

Packing： Steel/wooden reel, wooden reel or steel reel.

Standards

XLPE, Low-Voltage Power, 600 V UL Type XHHW-2 :

Conductor		Insulation Thickness (inch)	Nominal O.D. (mils)	Approx. Weight per 1000' (lbs)	Allowable Ampacities
Size (AWG / kcmil)	No. of Strands				60° C	75° C	90° C
8	7	0.045	227	30	35	40	45
6	7	0.045	259	39	40	50	55
4	7	0.045	303	57	55	65	75
2	7	0.045	358	85	75	90	100
1	18	0.055	409	108	85	100	115
1/0	10	0.055	446	131	100	120	135
2/0	18	0.055	486	161	115	135	150
3/0	18	0.055	533	198	130	155	175
4/0	18	0.055	585	243	150	180	205
250	22	0.065	650	293	170	205	230
300	35	0.065	700	346	195	230	260
350	35	0.065	746	398	210	250	280
400	35	0.065	789	449	225	270	305
500	35	0.065	866	552	260	310	350
600	58	0.080	973	675	285	340	385
700	58	0.080	1037	777	315	375	425
750	58	0.080	1068	829	320	385	435
900	58	0.080	1162	979	355	425	480
1000	58	0.080	1220	1085	375	445	500
