8000 Series Aluminium Alloy Conductor SER Service Entrance Cable

8000 Series Aluminium Alloy Conductor SER Service Entrance Cable

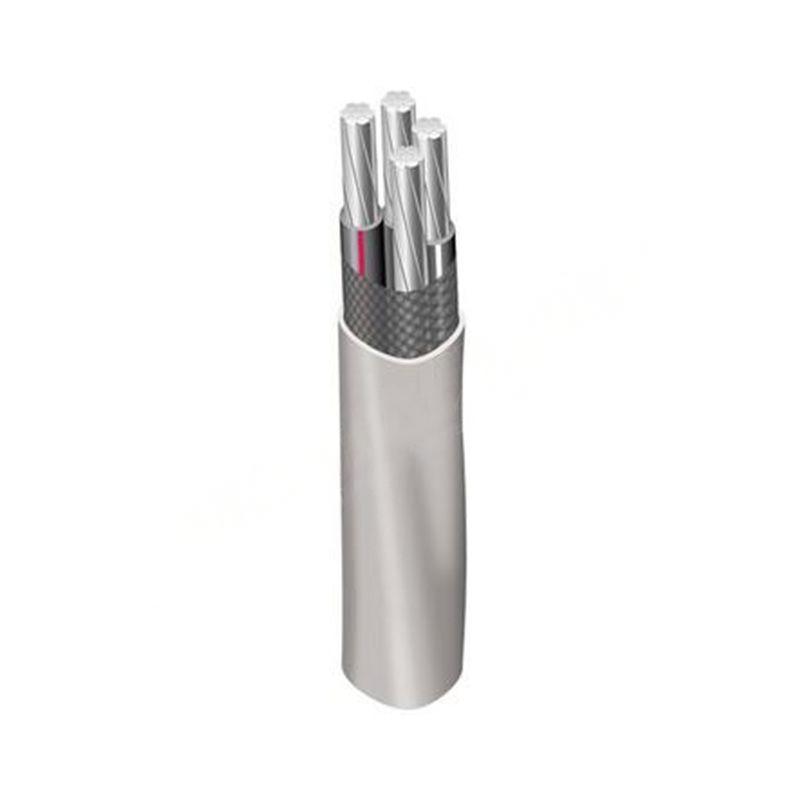

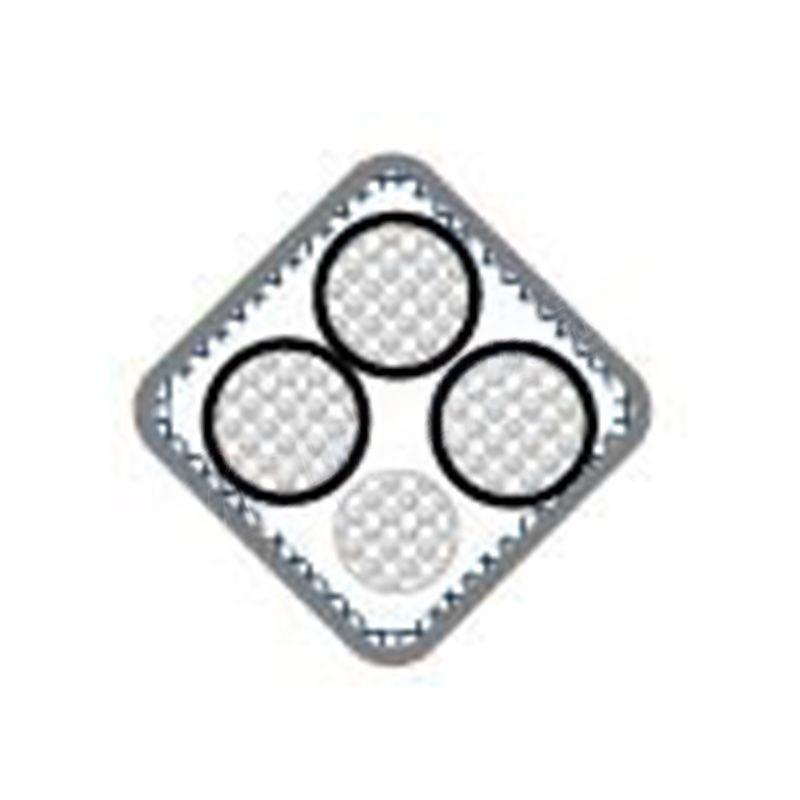

Construction: The stranded compacted 8000 series aluminium alloy conductor is insulated with XLPE. Two, three or four insulated conductors and a bare ground conductor are cabled together and covered with a fiberglass reinforced polyester tape binder and oversheathed with grey sunlight resistant PVC.





PDF Download

Details

Tags



Product details



Application: Aluminium SER Service Entrance Cable is primarily used as panel feeder in multiple unit dwellings and other branch circuits.

Rated Voltage: 600V.

Operating Temperature: Max permissible continuous operating temperature of conductor shall not exceed 90℃.

Standard: ASTM B800, ASTM B801, UL 44, UL 854 or other standards required by customers.

Packing: Steel/wooden reel, wooden reel or steel reel.



Standards



8000 Series Aluminum Alloy Conductor SER Service Entrance Cable

Insulated Conductor

Bare Conductor

Approx.

Overall Diameter

Insulated Conductor

Bare Conductor

Approx.

Overall Diameter

No. of Cores

No. of

inch

No. of Cores

No. of

inch

×AWG

Strands



×AWG

Strands



2x8

1x8

0.559

3x4

1x6

0.776

2x6

1x6

0.630

3x2

1x4

0.902

2x4

1x6

0.720

3x1

1x3

1.020

2x2

1x4

0.831

3x1/0

1x2

1.106

2x1

1x3

0.937

3x/2/0

1x1

1.197

2x1/0

1x2

1.016

3x3/0

1x1/0

1.307

2x2/0

1x1

1.094

3x4/0

1x2/0

1.421

2x3/0

1x1/0

1.189

4x2

1x4

1.043

2x4/0

1x2/0

1.291

4x2/0

1x1

1.398

3x8

1x8

0.606

4x4/0

1x2/0

1.673

3x6

1x6

0.689







All values are nominal and subject to correction.

Coloured insulation identification 2-core: black and white.

3-core: black, white and red.

4-core: black, white, red and blue.
