Di Lug Type Butterfly Valve - Durable & Efficient Flow Control

The Di Lug Type Butterfly Valve An Overview

A butterfly valve is a quarter-turn valve that utilizes a disc to regulate or isolate the flow of substances through a pipe. Among the various designs of butterfly valves, the Di Lug type stands out due to its versatility, reliability, and ease of installation. This article explores the features, applications, and advantages of the Di Lug type butterfly valve.

Design and Features

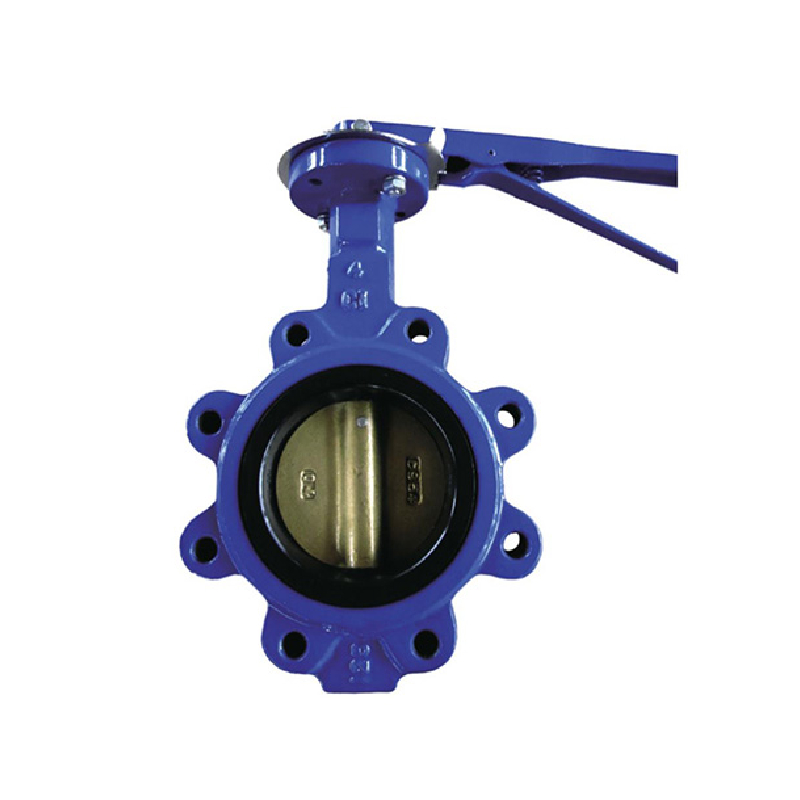

The Di Lug type butterfly valve is characterized by its distinctive design, which includes two lugs or mounting points on either side of the valve body. These lugs allow for secure attachment to the piping system, enabling a robust and stable installation. The valve operates using a circular disc, which rotates around an axis perpendicular to the flow. When the valve is in the open position, the disc is parallel to the flow, allowing for minimal resistance and an unobstructed flow path.

The materials used in constructing Di Lug butterfly valves can vary, including options like stainless steel, carbon steel, or plastic, depending on the specific requirements of the application. This flexibility in materials ensures suitable compatibility with various medium types, including water, gases, slurries, and corrosive substances.

Applications

Di Lug type butterfly valves are employed in a wide range of industries due to their adaptability. They are commonly found in

di lug type butterfly valve

1. Water Treatment Plants These valves are essential in controlling the flow of water and chemicals during treatment processes. 2. Chemical Processing The Di Lug design is suitable for handling chemicals due to its robust construction and potential for corrosion-resistant materials. 3. Food and Beverage Industry Sanitary versions of the Di Lug butterfly valve ensure compliance with health regulations while providing reliable flow control in production lines. 4. HVAC Systems These valves are used in heating, ventilation, and air conditioning systems to regulate airflow and maintain temperature control.

5. Mining and Slurry Applications The valve’s ability to handle abrasive materials makes it ideal for the mining industry, where slurries are prevalent.

Advantages

One of the main advantages of the Di Lug type butterfly valve is its compact design, which results in a reduced footprint compared to other valve types. This makes it easier to install in tight spaces without compromising functionality. Additionally, the lightweight construction simplifies transportation and installation.

Maintenance is straightforward, as the valve's design allows for easy accessibility to internal components. Many Di Lug butterfly valves also feature a resilient seat that provides a reliable seal, minimizing the risk of leaks. Furthermore, the quarter-turn operation enables swift actuation, whether manual or automated, thereby enhancing operational efficiency.

Conclusion

The Di Lug type butterfly valve is a crucial component in various industrial applications, offering a combination of durability, ease of use, and efficiency. Its unique design facilitates effective flow control while ensuring a secure connection within the piping system. As industries continue to evolve and seek solutions to manage fluid dynamics, the Di Lug butterfly valve will remain an essential choice for engineers and operators alike. By understanding its features and benefits, one can appreciate the role this valve plays in enhancing system performance across diverse sectors.
