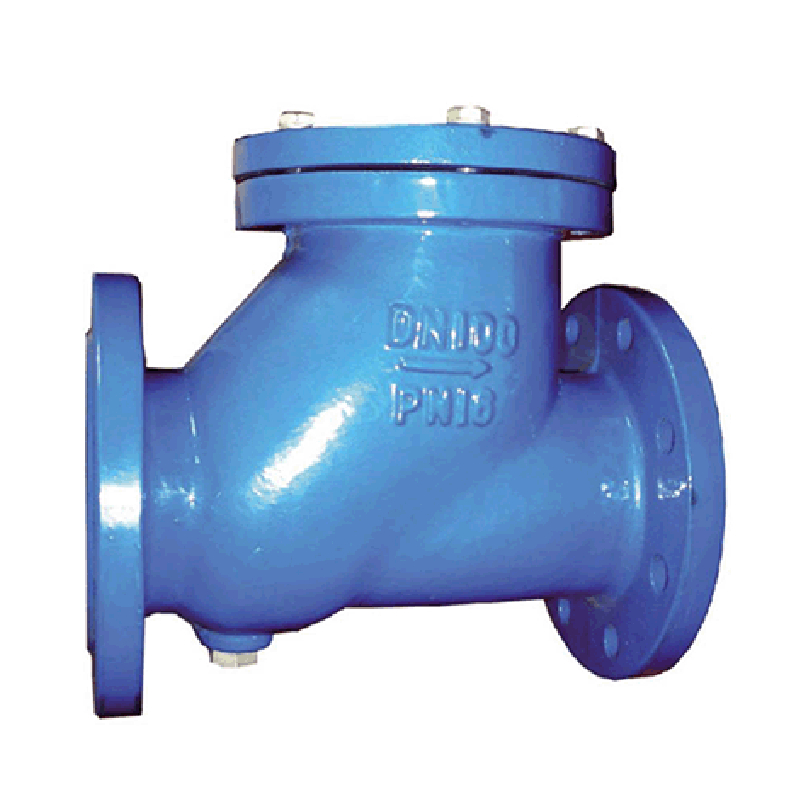

Sharli nazorat valfi

1.Dizayn va ishlab chiqarish:MSS SP-71/BS 5153/EN 12334.
2.Flanj o'lchamlari: ASME B16.1/EN 1092.
3.yuz t yuz o'lchamlari: EN 558-1/DIN 3202 F6.
4. Sinov va tekshirish: API 598.
5. Hajmi 24 dyuymgacha.

HOZIR BOG'LANING PDF yuklab olish

Tafsilotlar

Teglar

Standartlar

1. Dizayn va ishlab chiqarish: MSS SP-71/BS 5153/EN 12334.
2. Flanj o'lchamlari: ASME B16.1/EN 1092.
3. Yuz o'lchamlari: EN 558-1/DIN 3202 F6.
4. Sinov va tekshirish: API 598.
5. 24 dyuymgacha bo'lgan o'lcham.

Materiallar

1	Tana	CI /DI
2	To'p	CI + NBR/EPDM
3	Vint va murvat	Chelik + sink
4	Kaputning qistirmalari	NBR / EPDM
5	Kaput	CI /DI

O'lchamlari

DN	D	D1	D2	L	b	H	f	Zd
50	165	125	99	200	19	180	3	4-19
65	185	145	118	240	19	210	3	4-19
80	200	160	132	260	19	245	3	8-19
100	220	180	156	300	19	280	3	8-19
125	250	210	184	350	19	335	3	8-19
150	285	240	211	400	19	400	3	8-23
200	340	295	266	500	20	495	3	12-23
250	400	355	319	600	22	600	3	12-28
300	455	410	370	700	24.5	715	4	12-28
