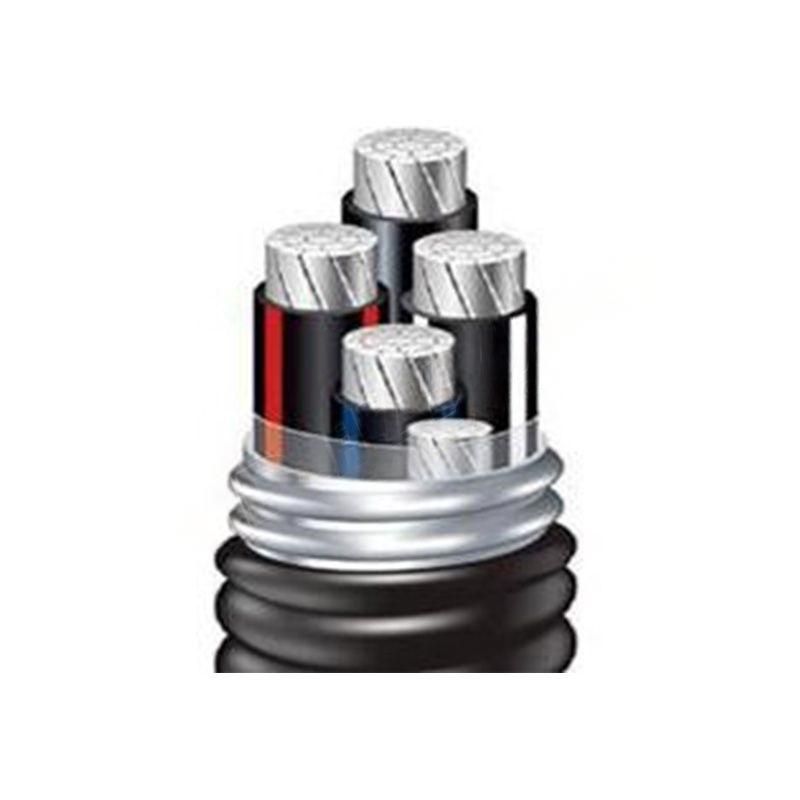

8000 Series Aluminium Alloy Conductor Type XHHW-2 Metal Clad (MC) Cable

8000 ਸੀਰੀਜ਼ ਐਲੂਮੀਨੀਅਮ ਅਲੌਏ ਕੰਡਕਟਰ ਦੀ ਕਿਸਮ XHHW-2 ਮੈਟਲ ਕਲੇਡ (MC) ਕੇਬਲ

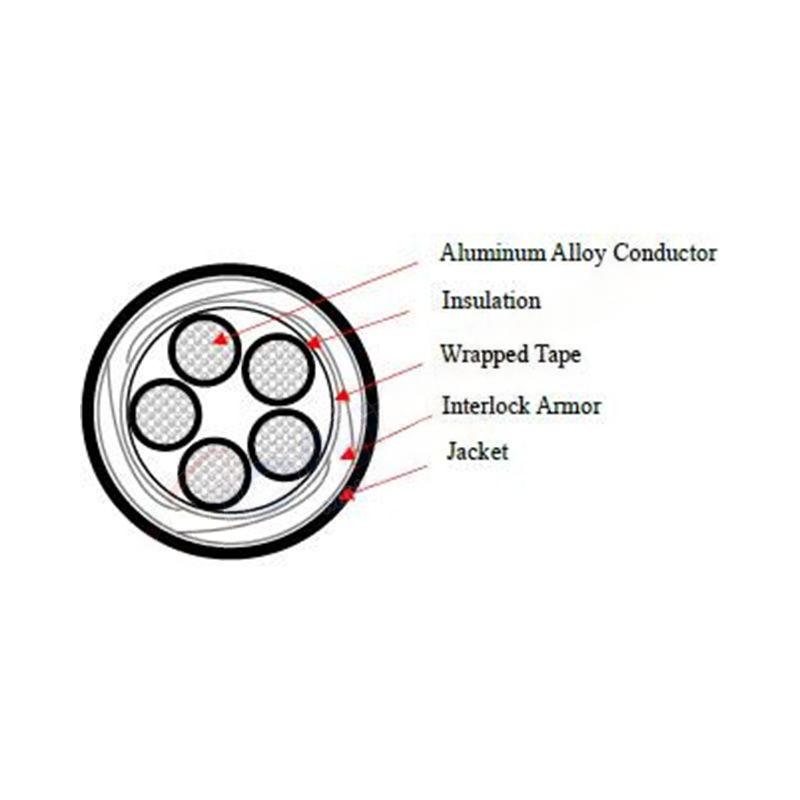

Construction: Type XHHW-2 conductors which is constructed with 8000 Series Aluminium Alloy Conductor and XLPE insulation. The insulated conductors and a bare ground conductor are cabled and wrapped with Mylar tape and then an aluminium alloy interlocked armour is applied. It can be manufactured with PVC sheath over the aluminum metal clad if direct burial is needed.

ਹੁਣੇ ਸੰਪਰਕ ਕਰੋ PDF ਡਾਊਨਲੋਡ ਕਰੋ

ਵੇਰਵੇ

ਟੈਗਸ

ਉਤਪਾਦ ਵੇਰਵੇ

Application： Type XHHW-2 MC cable is suitable for use as branch, feeder and service power distribution. It is suitable for use in wet or dry locations at temperature not to exceed 90 ℃. If it should be directly buried in the earth, MC cable with PVC sheath is an optimal choice. Maximum voltage rating for XHHW-2 applications is 600 Volts.

ਓਪਰੇਟਿੰਗ ਤਾਪਮਾਨ: Max permissible continuous operating temperature of conductor shall not exceed 90℃.

Standard： UL44 和 UL1569, ICEA S-66-524 or other standards required by customers.

Packing： Coil, steel/wooden reel, wooden reel or steel reel.

ਮਿਆਰ

8000 Series Aluminum Alloy Conductor Type XHHW-2 Metal Clad（MC）Cable :

ਕੰਡਕਟਰ ਦਾ ਆਕਾਰ*	ਜ਼ਮੀਨ		ਇਨਸੂਲੇਸ਼ਨ ਮੋਟਾਈ	ਸ਼ਸਤ੍ਰ ਮੋਟਾਈ**	ਮਿਆਨ ਦੀ ਮੋਟਾਈ	ਲਗਭਗ Diameter over Armor	ਲਗਭਗ Diameter over Sheath
AWG or kcmil	AWG		ਮਿਲੀਮੀਟਰ	ਮਿਲੀਮੀਟਰ	ਮਿਲੀਮੀਟਰ	ਮਿਲੀਮੀਟਰ	ਮਿਲੀਮੀਟਰ
ਨੰਗੀ ਜ਼ਮੀਨ ਦੇ ਨਾਲ 3 ਕੰਡਕਟਰ
6	6		1.14	0.65	1.27	22.3	24.8
4	6		1.14	0.65	1.27	25.0	27.5
2	6		1.14	0.65	1.27	28.4	30.9
1	4		1.4	0.65	1.27	31.6	34.1
1/0	4		1.4	0.65	1.27	33.9	36.4
2/0	4		1.4	0.65	1.27	36.4	38.9
3/0	4		1.4	0.65	1.27	39.2	41.7
4/0	2		1.4	0.65	1.52	42.4	45.4
250	2		1.65	0.75	1.52	46.5	49.5
300	2		1.65	0.75	1.52	49.5	52.5
350	2		1.65	0.75	1.52	52.3	553
400	1		1.65	0.75	1.52	55.0	58.0
500	1		1.65	0.75	1.52	59.7	62.7
600	1		2.03	0.75	1.91	66.3	70.1
700	1/0		2.03	0.75	1.91	70.3	74.1
750	1/0		2.03	0.75	1.91	72.2	76.0
1000	1/0		2.03	0.75	1.91	81.5	85.3
ਨੰਗੀ ਜ਼ਮੀਨ ਨਾਲ 4 ਕੰਡਕਟਰ
6	6	1.14		0.65	1.27	24.2	26.7
4	6	1.14		0.65	1.27	27.3	29.8
2	6	1.14		0.65	1.27	31.1	33.6
1	4	1.4		0.65	1.27	34.6	37.1
1/0	4	1.4		0.65	1.27	37.2	39.7
2/0	4	1.4		0.65	1.27	39.9	42.4
3/0	4	1.4		0.75	1.52	43.1	46.1
4/0	2	1.4		0.75	1.52	46.7	49.7
250	1	1.65		0.75	1.52	51.2	54.2
300	1	1.65		0.75	1.52	54.7	57.7
350	1/0	1.65		0.75	1.52	57.8	60.8
400	1/0	1.65		0.75	1.52	60.8	63.8
500	2/0	1.65		0.75	1.52	66.0	69.8
600	2/0	2.03		0.75	1.91	73.5	77.3
700	2/0	2.03		0.75	1.91	77.9	81.7
750	3/0	2.03		0.75	1.91	80.0	83.8
