Vàlvula de globus MSS

1. Design and manufacture: BS 5152/MSS SP-85.
2. Flange dimensions:EN 1092-2/ASME N16.1.
3. Face to face dimensions: EN 558/ASME B16.10.
4. Prova i inspecció: API 598.
5. Size up to 12".

CONTACTE ARA Descarregar PDF

Detalls

Etiquetes

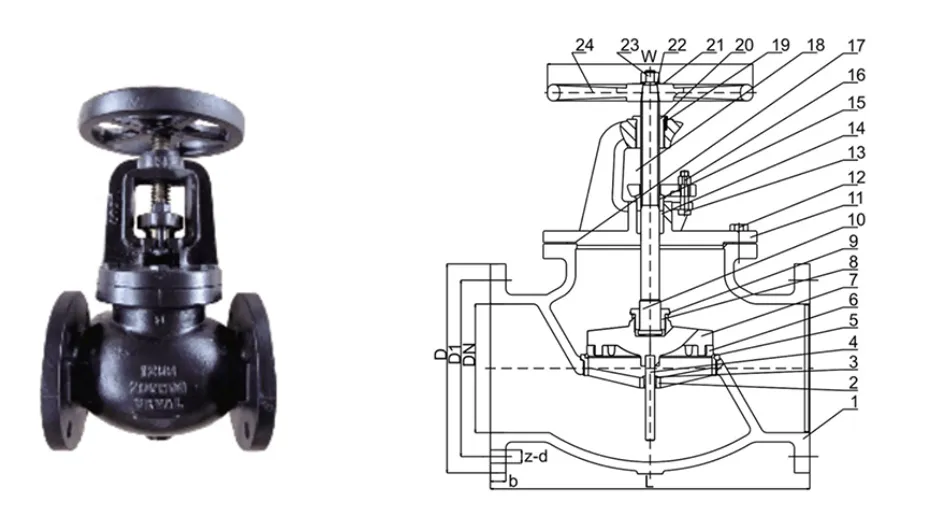

angle globe

Normes

1. Design and manufacture: BS 5152/MSS SP-85.
2. Flange dimensions:EN 1092-2/ASME N16.1.
3. Face to face dimensions: EN 558/ASME B16.10.
4. Prova i inspecció: API 598.
5. Size up to 12".

Materials

1	Cos	ASTM A126B	13	Bolts	ASTM A307B
2	Seient	ASTM A126B	14	Packing	Graphite
3	Guide	ASTM B16	15	Glàndula	ASTM B584
4	Seat ring	ASTM B62	16	Nou	ASTM A307B
5	Stem Guide	ASTM B16	17	Junta	Graphite
6	Disc ring	ASTM B62	18	Gland follower	ASTM A536
7	Disc	ASTM A126B	19	Screws	ASTM A307B
8	Swivel	ASTM B584	20	Yoke Sleeve	ASTM B62
9	Junta	ASTM B16	21	Naneplate	AL 2024
10	Tija	ASTM B584	22	Rentadora	ASTM A307B
11	Capó	ASTM A126B	23	Nou	ASTM A307B
12	Bolts	ASTM A307B	24	Handwheel	ASTM A126B

Dimensions angle type globe valve

Mida	L	DN	D1	D	b	Zd	W	Weight(kg)
2"	203	50	121	152	15.9	4-19	178	20
2.5"	216	65	140	178	18	4-19	178	22.4
3"	241	80	152	191	19	4-19	200	29
4"	292	100	191	229	24	8-19	254	42.5
5"	330	125	216	254	23.8	8-22	300	62
6"	356	150	241	279	25	8-22.2	300	88.4
8"	495.3	200	299	343	28.6	8-22.2	348	143
10"	622	250	362	406	30.2	12-25	400	220
12"	698.5	300	432	483	32	12-25	457	290
